Frank,

   It is Frank, right?

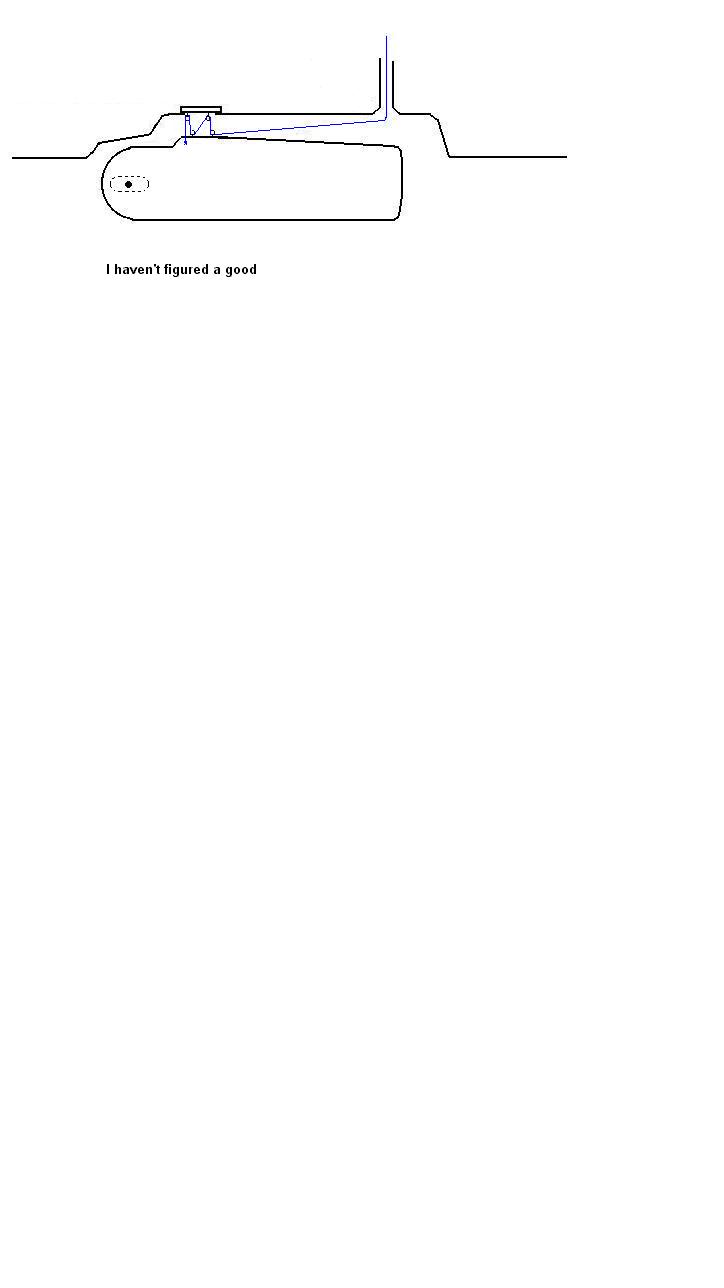

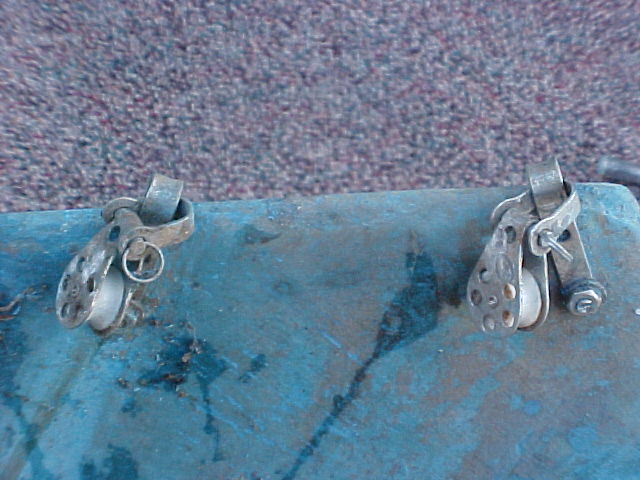

   On my 1974, I removed the cover plates on both sides and pushed the pin out with a long punch.  I am afraid I can not be of much help on the block set up.  My c/b has two blocks on the board itself, and two bolted to a removable wooden cover on top of the trunk in the cabin.  The wooden cover is most likely a P.O. fix.  You may be able to see the micro blocks in the pic I sent of the board laying on the ground.  they are attached with tiny bails through holes drilled in the trailing edge of the board.

   The physical dimensions of the rudder blade and the centerboard are identical except the centerboard weighs about 75 - 100 lbs, whereas the rudder blade weighs very little,  guess about 10 - 15 lbs.  I have the e-mail address of a guy on Long Island.  He  has/had? a 1970 Rhodes 22 that he was going to part out and sell on e-bay.  I e-mailed him several times and he kept promising to get back to me after he took pics.  Whatever I did not want, he was going to sell on e-bay, but he never had time to take the pics, so I stopped e-mailing him.  I figured he is busy like most of us are and I didn't want to be a pest (my usual M.O.). :-)  Here is a copy of his e-mail posted to the Sailnet Rhodes 22 list.

>>> Hi All:

I am parting a 1970 Rhodes 22 - in the next few weeks, these will be on Ebay - but I thought that I would give you an early consideration.

Parts include mast, rudder, winches, cleats, standing rigging, all stanchtions, lifelines, lighting fixtures, sails, cushions - and anything else that I can remove.

Boat is located in Long Island, NY.

Regards,

Joe




----- Original Message -----
From: FNuttersNY at aol.com
Date: Sun, 28 Dec 2003 11:00:04 EST
To: rhodes22-list at rhodes22.org
Subject: Re: [Rhodes22-list] " centerboardissues"

>  Thanks Todd, you are correct sir and you may have saved me a lot of work.
> You described my exact set up.  I was under this morning and could see no seam
> up inside there. I have plates that screw  on the side and there is a recess
> for a pin molded  into the walls of the trunk. .  I thought they were home made
> to facilitate a repair but they look intact and usable.  Do you now if the
> rudder is the same dimension as the board as I have heard?  I will leave the
> cemented area intact.  I did not relish jack hamering it out.  And for the small
> amount of seepage I get it's not worth pounding away at the cement block.  It
> looks like the center guide of the trailer has to be removed for me to do this
> or cribb the boat up and pull the trailer out.  I may need some detail from
> you on the rope and pulley set up.  I do have the remains of mine. Thanks again.
