[Rhodes22-list] Broken Goose Neck Pictures

[Wally Buck]

Bud,

Your boom slider is different then mine. (Not uncommon)This is why Ed
suggested photos. There are a couple of different versions. My slider does
have a nut and washer to attach gooseneck but it does not look like your
slider.There are also two screws that attach to flanges. These screws do not
have a nut inside. If these pulled out you can re-tap. Do not tap all of the
way through.

You photos show no flanges. The flanges go around the furling tube inside
the mast. Perhaps this version has no nut attaching gooseneck. Insert the
bolt with gooseneck attached and see if it goes all the way through. MJM's
post suggest that there may be no nut.

Sorry for any mis-information.

Wally


>From: Bud <budconnor at earthlink.net>
>Reply-To: budconnor at earthlink.net,The Rhodes 22 mail list
><rhodes22-list at rhodes22.org>
>To: The Rhodes 22 mail list <rhodes22-list at rhodes22.org>
>Subject: [Rhodes22-list] Broken Goose Neck Pictures
>Date: Sun, 25 Sep 2005 21:45:21 -0400
>

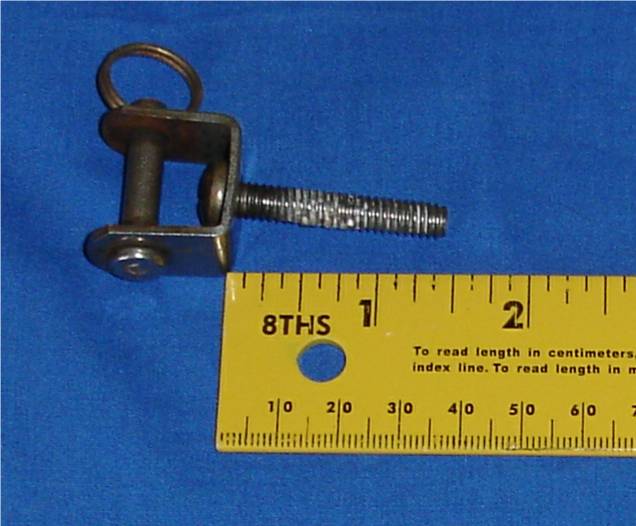

>Attached are three pictures of my broken gooseneck, one of the gooseneck
>and two of

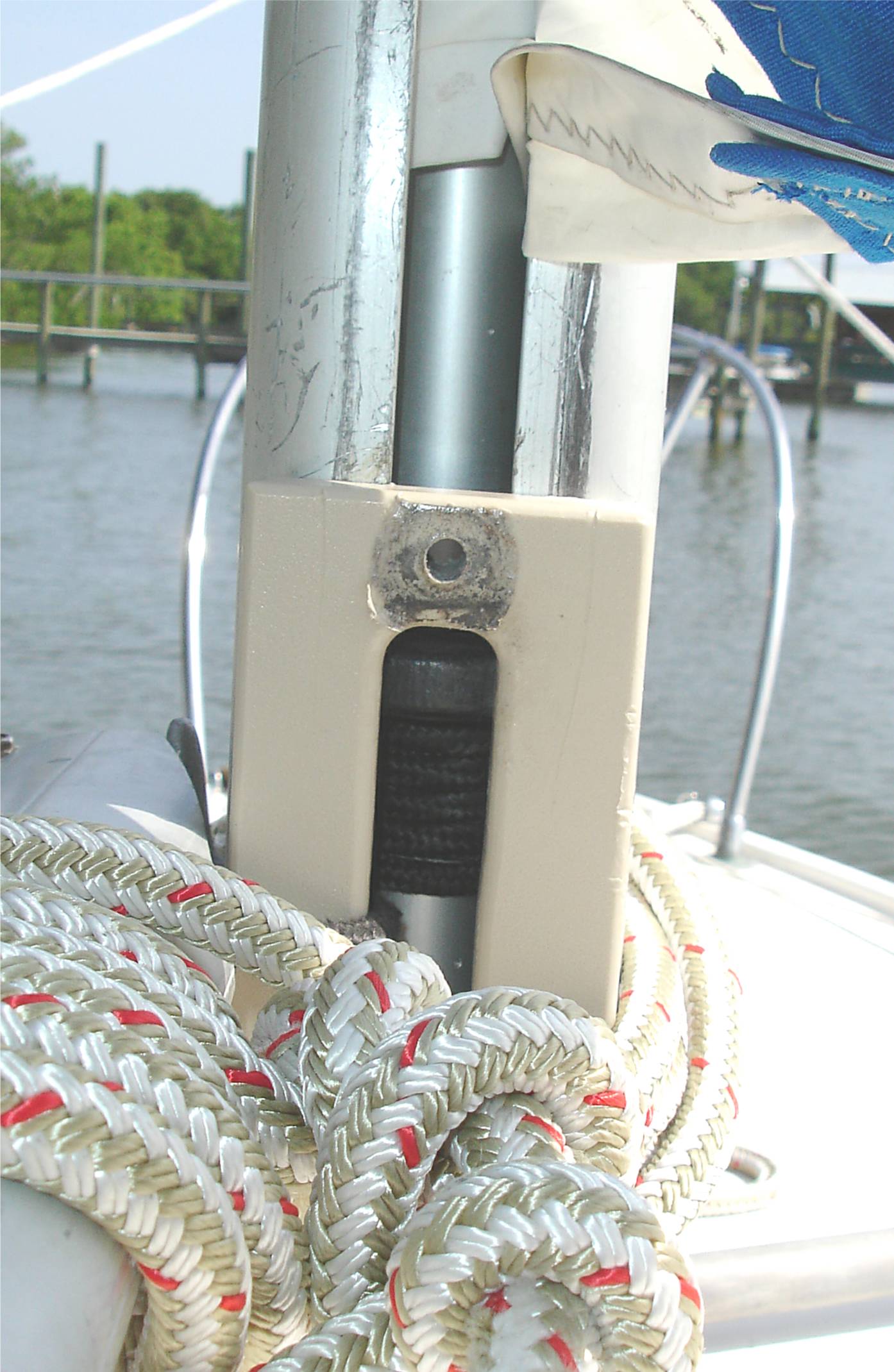

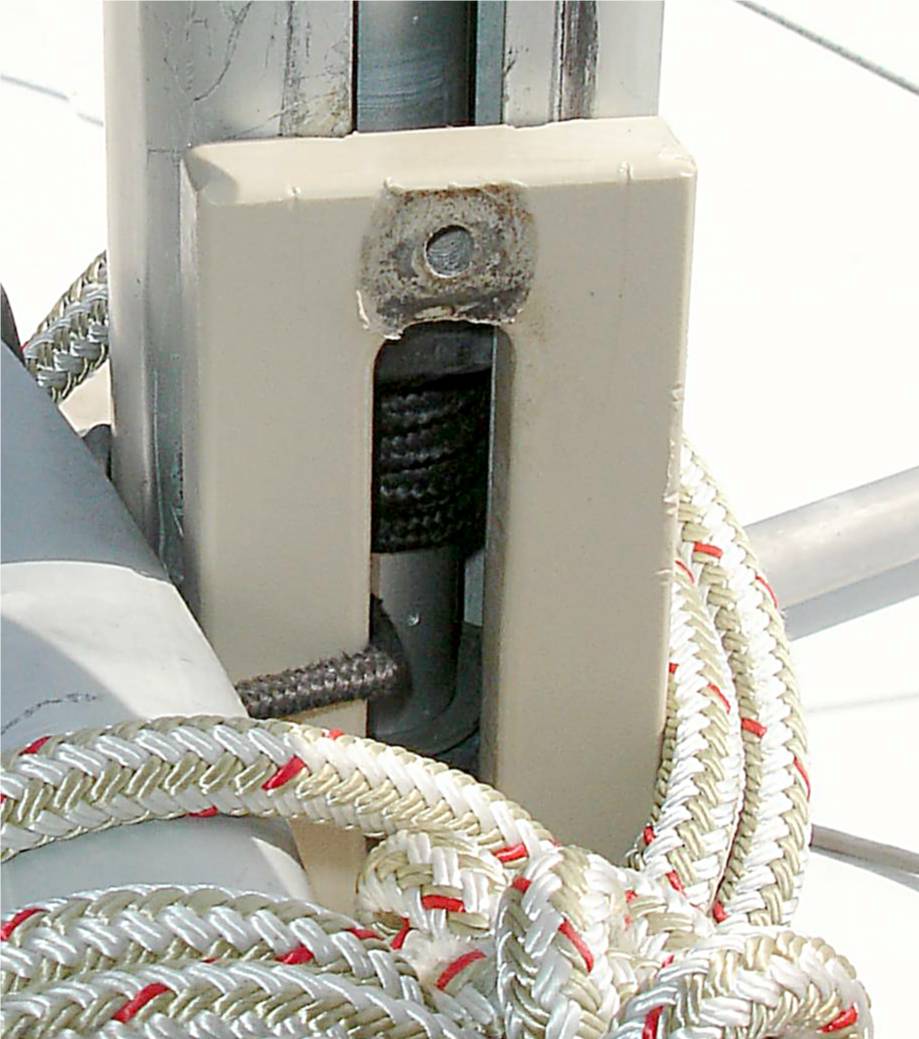

>where it pulled out of the raising plastic block on the bottom of the IMF
>mast.  It looks like
>I can put a washer and a nut on the back side, but I did not find any "old"
>parts inside my mast. There is a black slider/flange? inside the mast that
>is visible just above the main furling line. If I do put put a nut on the
>back of the main's raising block, should the black slider inside the
>mast be above or below the gooseneck?
>
>Thanks!
>Bud Connor
>S/V  1990 Rhodes 22 - currently un-named
>Melbourne, FL
>
>
>
>
>Bud wrote:
>
>>Ed,
>>  pictures are a good idea.  I do have a camera, but I did not have it
>>with me at the time.
>>I will go back and take a few pictures and post.
>>
>>Bud Connor
>>S/V  1990 Rhodes 22 - currently un-named
>>Melbourne, FL
>>
>>ed kroposki wrote:
>>
>>>Bud:
>>>
>>>     Rummy usually has all the technical pictures.  Ask him to put down
>>>his
>>>drink long enough to post a relevant picture.     Of course, you could
>>>have posted pictures of your problem so others
>>>know exactly what you are discussing.  Wally tried to answer your
>>>question
>>>and did a good job based on inadequate information.  Do you have a
>>>digital
>>>camera?  A $100 bucks would get you one that would do an adequate job.
>>>Send
>>>us the pictures.
>>>
>>>     Bad night at hospital last night so I am being a hard ass about
>>>scurrilous details that should seem obvious in today's world.  Because
>>>others do not make any effort, there is nothing wrong with providing
>>>good,
>>>accurate, demonstrable information about a situation.
>>>
>>>
>>>
>>>Ed K
>>>
>>>Greenville, SC, USA
>>>
>>>Addendum:  "
>>><http://en.thinkexist.com/quotation/accuracy_of_language_is_one_of_the_bulwa
>>>
>>>rks_of/179976.html> Accuracy of language is one of the bulwarks of truth"
>>><http://en.thinkexist.com/quotes/anna_jameson/> Anna Jameson quotes
>>>(Irish
>>>Essayist, 1794-1860)
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>------------------------------------------------------------------------
>>>
>>>__________________________________________________
>>>Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
>>>
>>__________________________________________________
>>Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
>>
>>


>Name: pic_1.JPG Type: image/jpeg Size: 138606 bytes Desc: not available
>Url:
>http://www.rhodes22.org/pipermail/rhodes22-list/attch/200509/25/pic_1.jpg


>Name: pic_2.JPG Type: image/jpeg Size: 362444 bytes Desc: not available
>Url:
>http://www.rhodes22.org/pipermail/rhodes22-list/attch/200509/25/pic_2.jpg


>Name: pic_3.JPG Type: image/jpeg Size: 58120 bytes Desc: not available
>Url:
>http://www.rhodes22.org/pipermail/rhodes22-list/attch/200509/25/pic_3.jpg
