[Rhodes22-list] Fwd: a picture for you

[andrew collins]

BIll

The engineering answer is that assuming the center of gravity is at the
center of the boat, (close enough for this rough estimate), the bow eye will
be supporting 50% of the 2900 lb boat weight when the boat is level. As the
lift raises the boat the load on it will decrease until it is supporting 0%
of the weight at vertical. This theoretical of course because all kinds of
things would happen before it got to the vertical position, like fall off
the rear stands. At the few degrees above horizontal the supported weight
from the bow eye would be .5 x 2900 lbs - 2-3 % of 2900. So the estimate is
right on. I am planning to do the same but with boat stands and a jack as I
don't have that nice lift, and the trailer will have to remain in place.
Andrew C
s/v Carmen
Grass Island, Greenwich CT
On Sun, Apr 6, 2008 at 9:11 PM, <cjlowe at sssnet.com> wrote:

> Bill,
> I would guess between 1200-1500 lbs. I always take every thing out of my
> boat for winter,and store it in the basement. I don't load it back up
> until I've freshened the bottom paint.The engine lift only put that
> strain on the eye bolt for about 5 minutes. Thats the time it takes me
> to pull the trailer forward until the wheel  hits the cherry picker
> leg,put the bow jack in place,and jack it up . However I always have
> the cherry picker in the bow eye when I'm under the boat,as an extra
> safety measure.
> Jerry Lowe
>
>
> On 4/4/2008, "bill davidge" <wpdavidge at gmail.com> wrote:
>
> >---------- Forwarded message ----------
> >From: bill davidge <wpdavidge at gmail.com>
> >Date: Fri, Apr 4, 2008 at 7:32 PM
> >Subject: a picture for you
> >To: wpdavidge at gmail.com
> >
> >

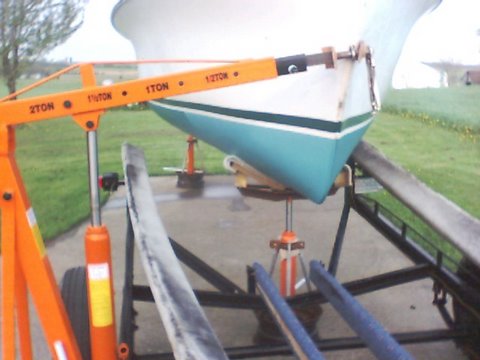

> >Can some one give me  an idea Me how much weight is on this eye bolt ?
> >
> >You have been sent 1 picture.
> >
> >
> >jacks3.jpg
> >
> >These pictures were sent with Picasa, from Google.
> >Try it out here: http://picasa.google.com/
> >-------------- next part --------------
> >A non-text attachment was scrubbed...
> >Name: jacks3.jpg
> >Type: image/jpeg
> >Size: 31435 bytes
> >Desc: not available
> >Url :
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20080404/13130182/attachment.jpg
