[Rhodes22-list] Backstay Tensioner

Lou Rosenberg lsr3 at nyu.edu
Mon Aug 10 13:36:45 EDT 2009

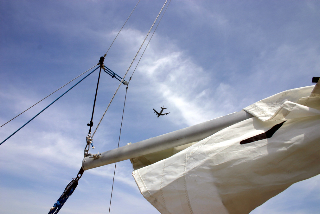

A non-text attachment was scrubbed...
Name: IMG_0083sm.jpg
Type: image/jpeg
Size: 90273 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20090810/eee0e766/attachment.jpg
-------------- next part --------------
David, Rick, Lee

I have the standard mast and keep my backstay tension fairly tight.
As David mentioned on the standard mast rig for the R22,
the backstay tension helps keep my furler tighter so I can sail
upwind easier.   On a good day sometimes I can sail a bit less than
45 degrees upwind, but mostly Im quite satisfied with Miracles close
hauled performance with the furler kept very tight.  I have a Harken
00, which is discontinued, (one piece foil)  it came with a head stay
inside and a brass turnbuckle which is very tough to adjust on the
lower end.  Thus the backstay helps take up a bit of the extra slack
on the rig.
Lou


it stays around th
On Aug 10, 2009, at 9:48 AM, David Walker wrote:

> The classic reason for adjusting backstay tension while sailing is
> to adjust
> the position and shape of the mainsail draft on a fractionally
> rigged boat.
> Tightening the back stay bends the mast into a slightly convex
> shape (top of
> mast aft, point where forestay attaches forward).  With a properly
> cut main
> this flattens the sail and reduces its drag significantly for upwind
> sailing.
>
> That being said, the R22 is a mast head rig and if you have IMF you
> do not
> want to bend the mast.  On the R22 the backstay should be tightened
> to get
> sufficient tension in the jib luff, but overtightening will bend
> the mast
> against the lower stays and the larger mast extrusion for the IMF
> might
> permantly deform and totally screw up main furling.  Any way the
> flat cut
> IMF main is not going to respond to mast bending.
>
> At the most, one might tighten the backstay to tension the jib luff
> at the
> start of a sail and loosen it a little at the end of the day but
> this is
> probably not neccessary.
>
> If you have a conventional main with the proper cut (like I think
> Roger P
> has) adusting backstay tension to bend the mast makes sense.
>
> David Walker,  SV Windswept
>
> www.davidwalkerphotography.com
>
> Event Specialists
>
> 781-639-2707 Office
> 781-718-8690 Cell
> ----- Original Message -----
> From: "Leland" <LKUHN at cnmc.org>
> To: <rhodes22-list at rhodes22.org>
> Sent: Monday, August 10, 2009 8:22 AM
> Subject: Re: [Rhodes22-list] Backstay Tensioner
>
>
>>
>> Rick,
>>
>> Not that I need something else to adjust on my boat, but when do you
>> adjust
>> it?  Is it something as simple as tight for upwind and loose for
>> downwind
>> or
>> are there a million options depending on the conditions?
>>
>> Lee
>>
>>
>>
>> Rick-139 wrote:
>>>
>>> This is a gizmo from Harken that works well.  It has two sheaves
>>> in a
>>> frame
>>> with a built in jam cleat.  The outer sheave is only used to
>>> fasten one
>>> end
>>> of the hauling line.  The inner sheave replaces one of the stock
>>> turning
>>> blocks which can be seen still attached to the stay.  Instead of
>>> having
>>> to
>>> run the line down to a horn cleat on the transom that is awkward to
>>> reach,
>>> my first mate can now easily change the stay tension.
>>>
>>> Rick
>>> -------------- next part --------------
>>> A non-text attachment was scrubbed...
>>> Name: BackstayTensioner1.jpg
>>> Type: image/jpeg
>>> Size: 73097 bytes
>>> Desc: not available
>>> Url :
>>> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/
>>> 20090809/bb8932c0/attachment.jpg
>>> -------------- next part --------------
>>> A non-text attachment was scrubbed...
>>> Name: BackstayTensioner2.jpg
>>> Type: image/jpeg
>>> Size: 67922 bytes
>>> Desc: not available
>>> Url :
>>> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/
>>> 20090809/bb8932c0/attachment-0001.jpg
>>> __________________________________________________
>>> To subscribe/unsubscribe go to
>>> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>>>
>>> For the list Charter and help with using the mailing list and
>>> archives go
>>> to http://www.rhodes22.org/list
>>> __________________________________________________
>>>
>>>
>>
>> --
>> View this message in context:
>> http://www.nabble.com/Backstay-Tensioner-tp24893288p24898749.html
>> Sent from the Rhodes 22 mailing list archive at Nabble.com.
>>
>> __________________________________________________
>> To subscribe/unsubscribe go to
>> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>>
>> For the list Charter and help with using the mailing list and
>> archives go
>> to http://www.rhodes22.org/list
>> __________________________________________________
>>
>
>
> __________________________________________________
> To subscribe/unsubscribe go to http://www.rhodes22.org/mailman/
> listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and
> archives go to http://www.rhodes22.org/list
> __________________________________________________

Lou Rosenberg
Videographer

Steinhardt School of Culture, Education and
Human Development at NYU

239 Greene Street, Room 315
lsr3 at nyu.edu

(212) 998-5122
