[Rhodes22-list] Now electric motor lift

Chris Cowie ccowie at cowieassociates.com
Mon Nov 9 12:13:51 EST 2009

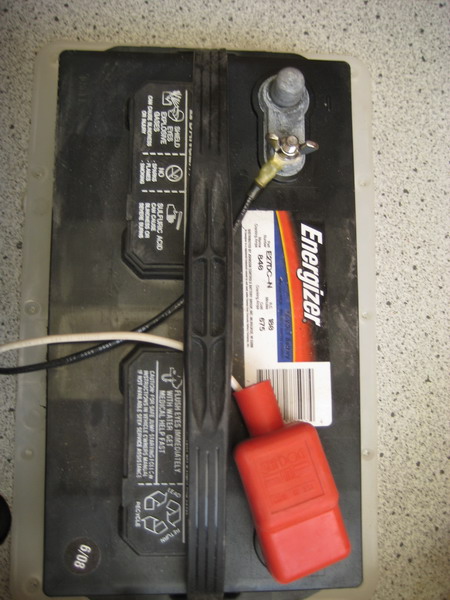

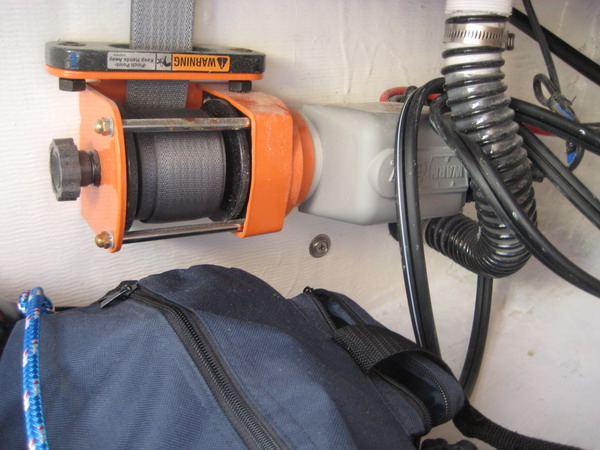

I have the electric lift on my new R22 2009 for a long shaft 8hp Yamaha and so far this first season it has worked great.  I typically let it down all the way and then take up the slack.  It is powered by my non-house battery and I make sure I don't run anything else from this battery to reserve power when needed.  I think this is a link to the winch instructions.

http://www.warn.com/works/dcwinches/1700DC.shtml



Christopher P. Cowie


4400 MacArthur Blvd, NW
Suite 300
Washington, DC  20007
202.342.2711
202.342.2691 fax
202.270.1470 mobile

[ccowie at cowieassociates.com]
cowieassociates.com


-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org [mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Lowe, Rob
Sent: Monday, November 09, 2009 11:32 AM
To: The Rhodes 22 Email List
Subject: Re: [Rhodes22-list] Now electric motor lift

Anyone who has one of these see any problems?

Lee,
The one photo shows the strap coming out of the stern mounted slot and the slot is cracked.  It that because of the install or has the strap slipped to the side and caused that slot to crack?  135 pounds is a lot of motor too, wonder what the rating on that lift is? - rob


-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org [mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Leland
Sent: Monday, November 09, 2009 10:38 AM
To: rhodes22-list at rhodes22.org
Subject: Re: [Rhodes22-list] Now electric motor lift


Rob,

Don't know if these pictures will help much.  Not any better at photography
than I am at sailing.

Pictures of motor lift:

http://old.nabble.com/file/p26268434/At%2BEase%2B10-5-09%2B019.jpg
http://old.nabble.com/file/p26268434/At%2BEase%2B10-5-09%2B021.jpg

Picture of bar that fits into the track:

http://old.nabble.com/file/p26268434/At%2BEase%2B10-5-09%2B023.jpg

Picture of lift from above with motor down.  If you continue operating the
winch (for a millisecond) after the motor is all the way down, the belt
won't have any tension on it.  Thanks to your help, I pulled the belt to
starboard and discovered that it helped center the lift in the track while
raising.  After further experimentation I think the winch is barely adequate
to lift my 135 lb. motor, the track needs to be well-greased (siliconed),
and my battery needs to be fully charged.

http://old.nabble.com/file/p26268434/At%2BEase%2B10-5-09%2B022.jpg

Picture of motor mount slightly off-center in track.  On Alice's lift, the
bar was so off-center that it slipped out of the track and dropped the motor
into the water.

http://old.nabble.com/file/p26268434/At%2BEase%2B10-5-09%2B020.jpg

Thanks for your help!

Lee
1986 Rhodes22  At Ease
Kent Island, MD
--
View this message in context: http://old.nabble.com/Was-Sunday-sail%3A-Now-electric-motor-lift-tp26101527p26268434.html
Sent from the Rhodes 22 mailing list archive at Nabble.com.
