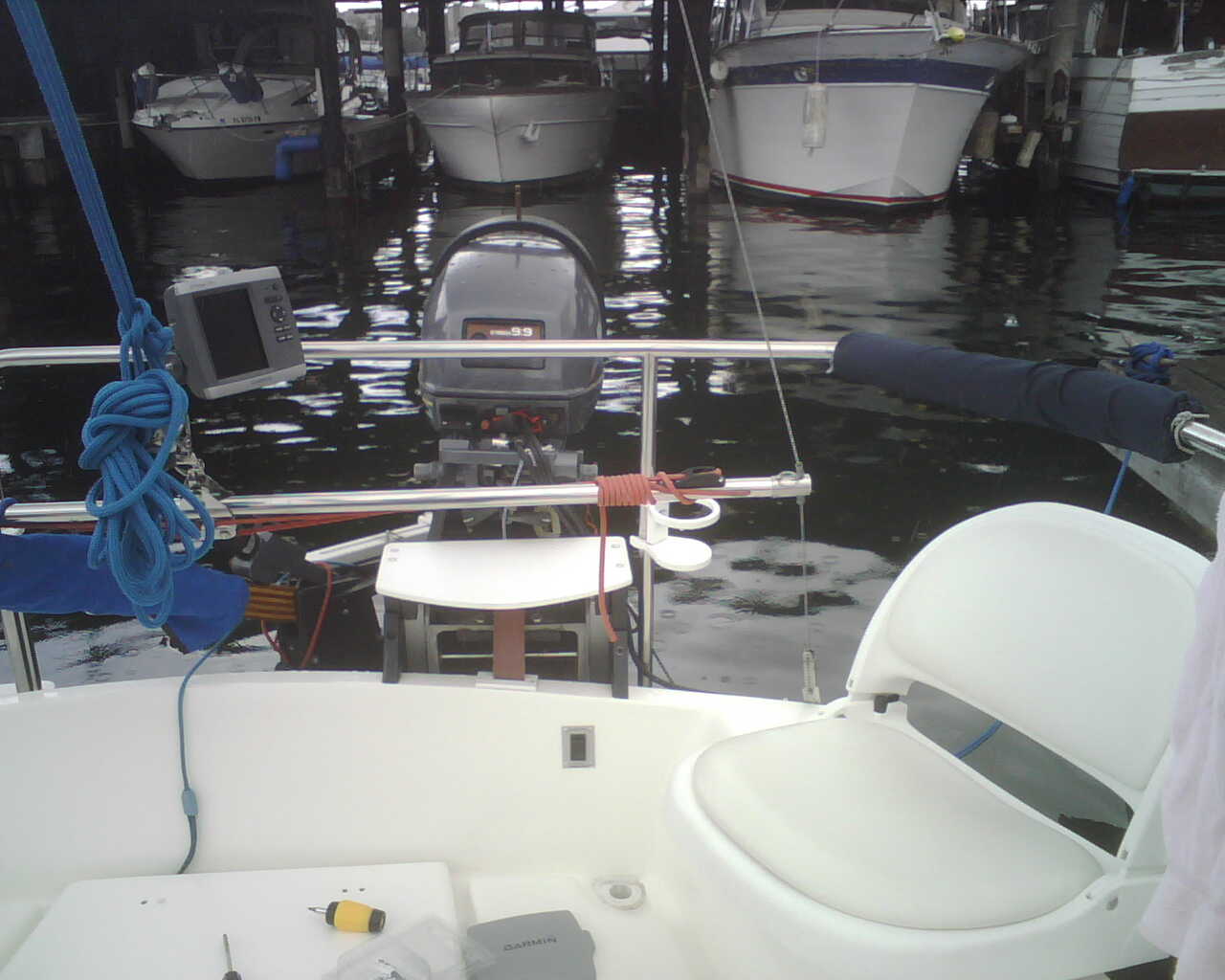

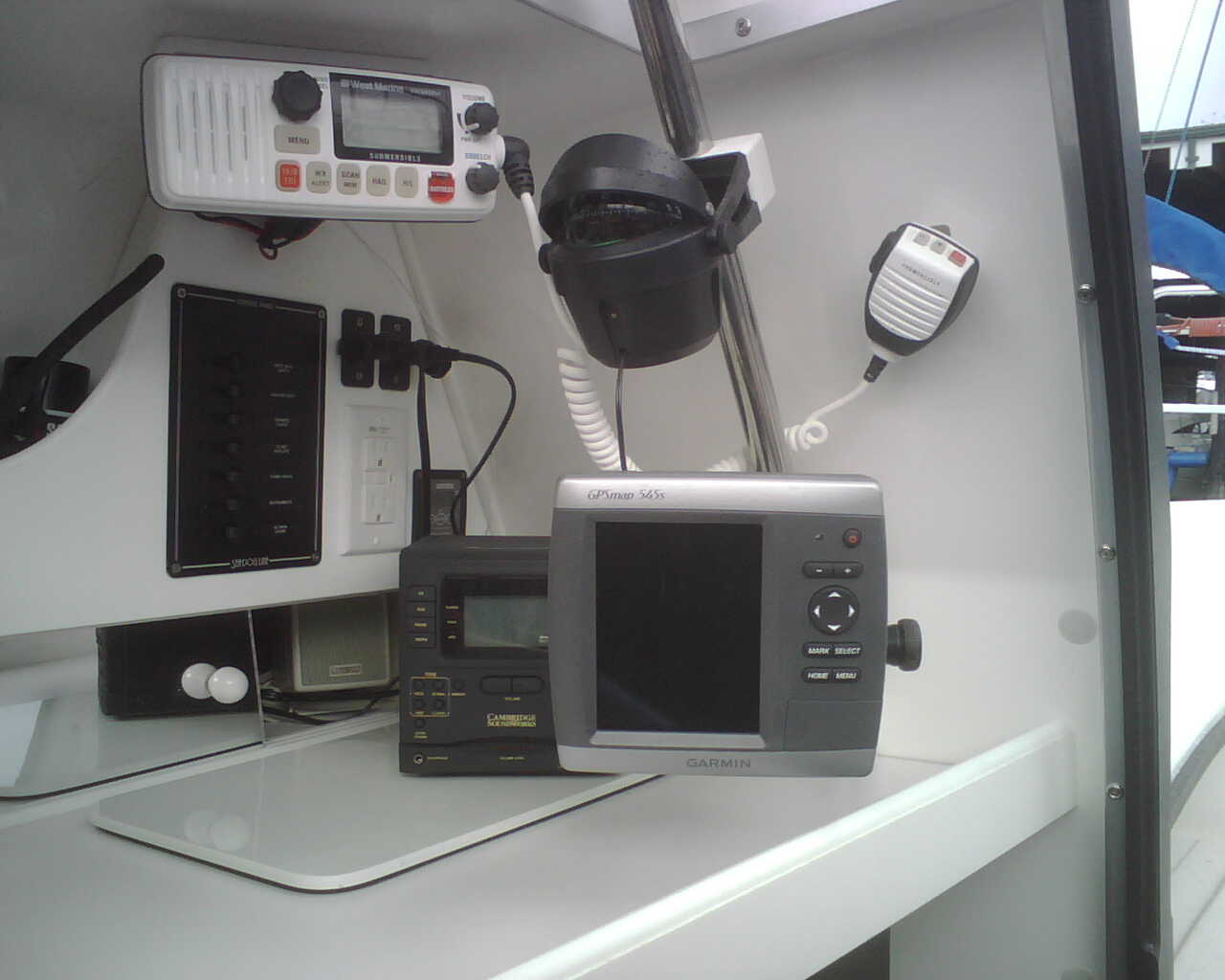

I have the same 545S chart plotter and love it.  Enclosed is a photo of how
I mounted it to the bulkhead.  It has the same swivel base as yours however
I see that you have added the Ram mounts.  Nice set up.  I don't mind having
to move closer to the unit when I want to change a setting and like the way

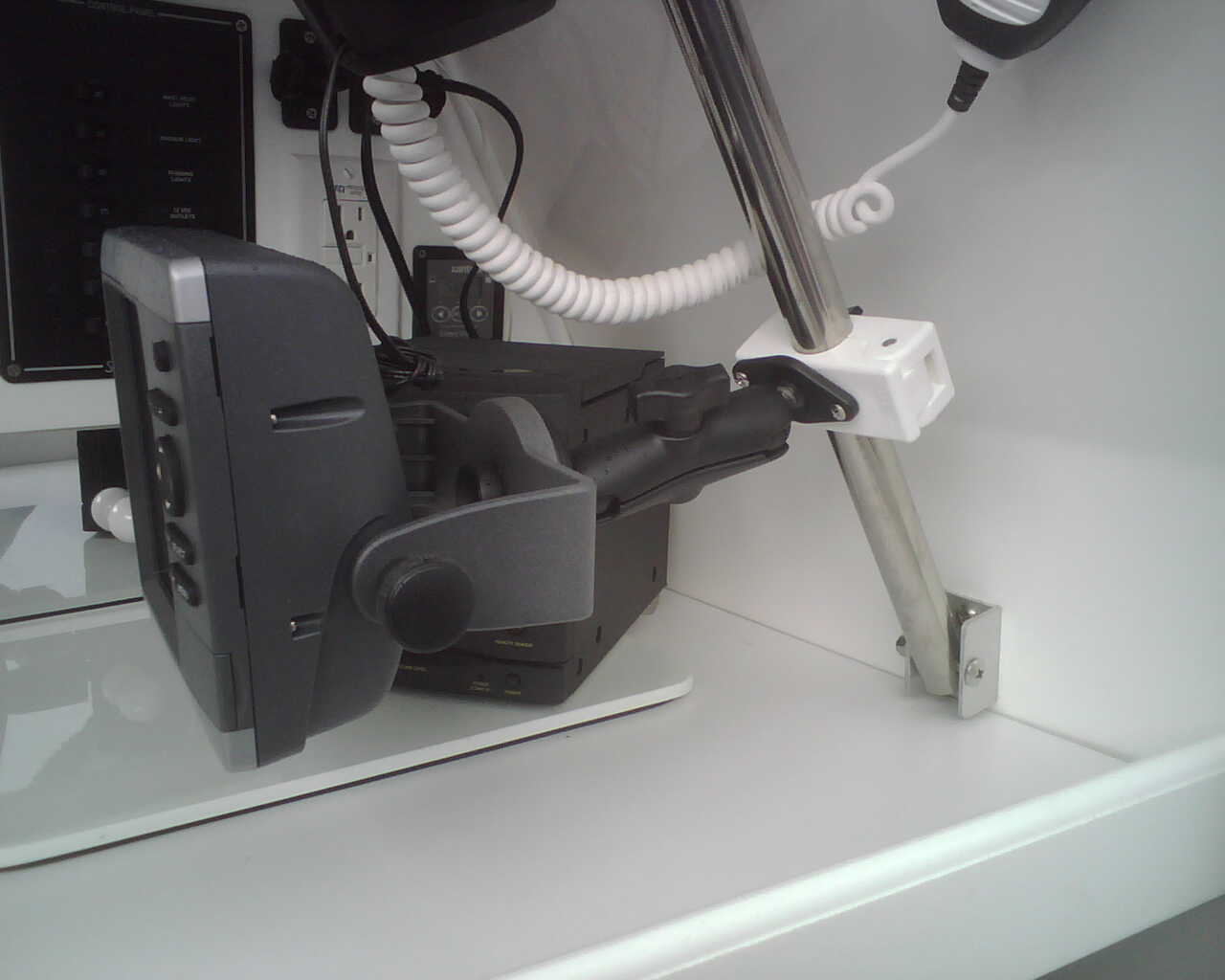

the wires just wrap inside the cabin door.  Easy on and off and the wires
just fold down into the drawer when the unit is not mounted.



David Bradley wrote:
>

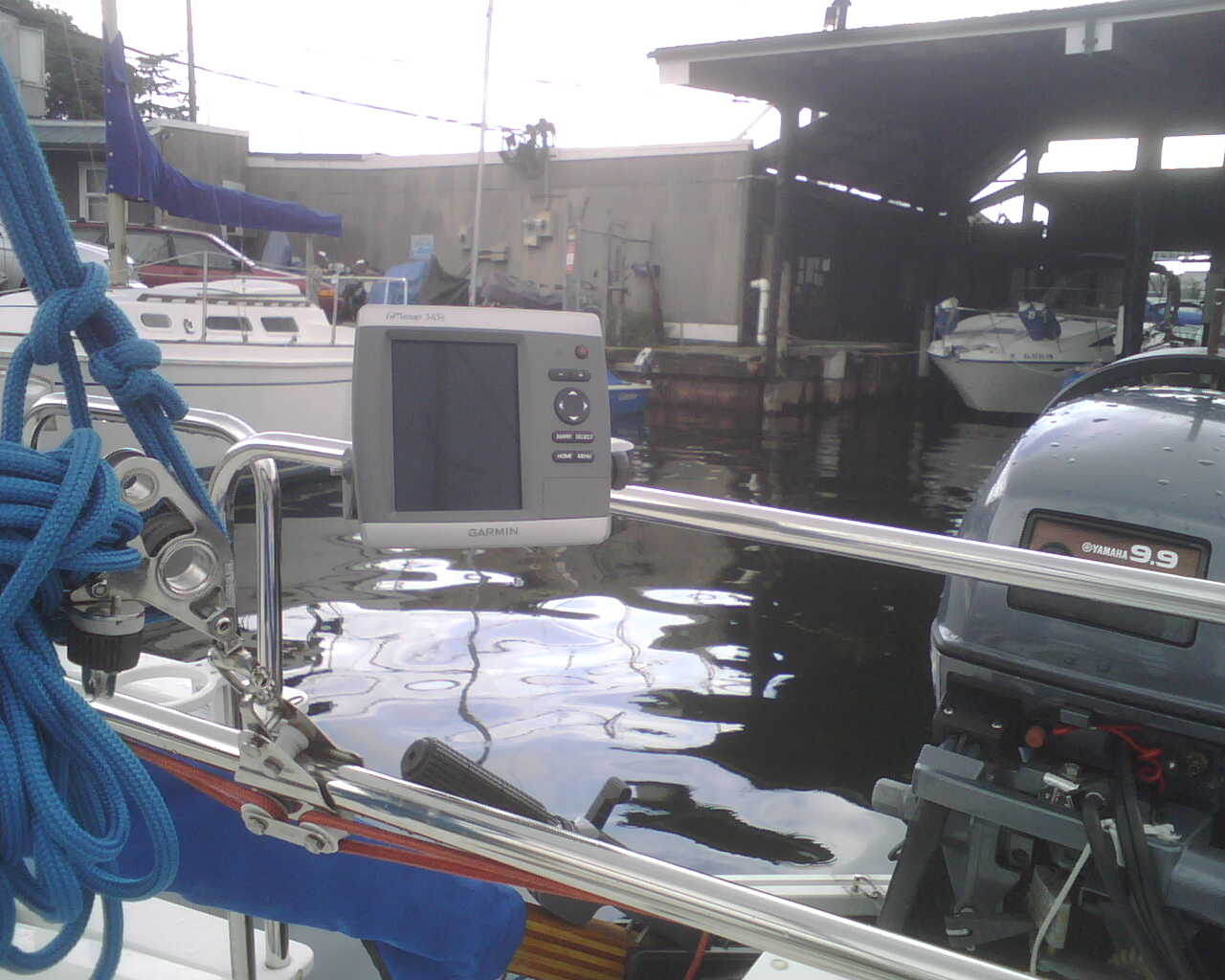

> I finally got some time to mount the chart plotter I just had to have
> last year.  I still need to figure out the wiring and install the
> depth sounder puck - going to run the wires under the seat into the
> laz and connect to the 12V auxiliary plug wiring in there unless
> someone has a better idea.  This set up is perfect for viewing the
> chart plotter from either captain's chair or the regular seat while
> holding the tiller.  It can be swivelled as you tack or for a mate to
> view.  It will easily pop off and mount in the cabin on the extra
> knob, and if I get an extra wiring harness it could be used inside the
> cabin as a chart plotter (or I suppose I could install a second puck).

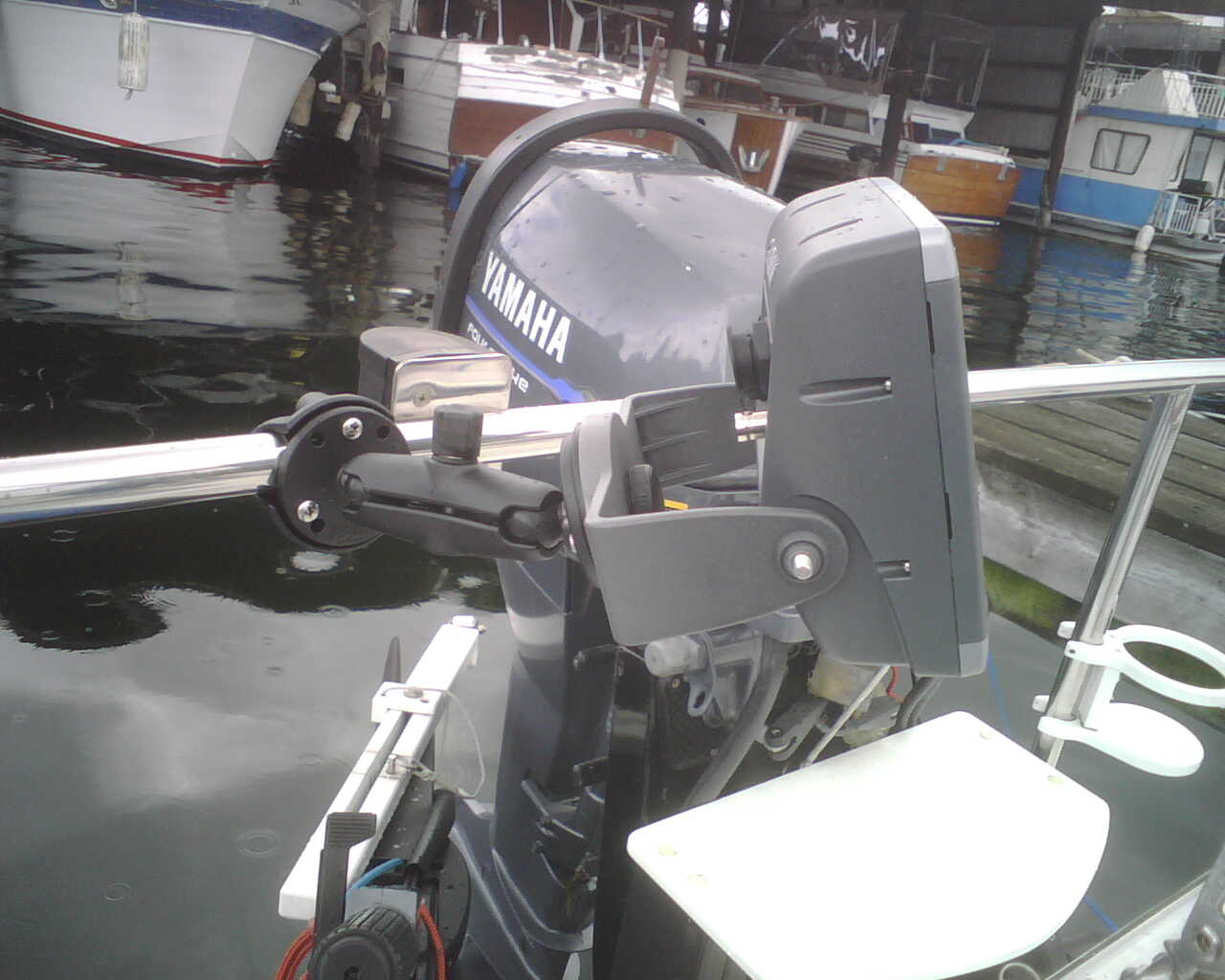

>  All of the mounting components are from Ram, and came off the rack at
> West Marine or FiIsheries Supply.
>
>
> Dave
