[Rhodes22-list] connecting Ray Marine ST1000

Sun Jul 31 18:18:55 EDT 2011

Peter,

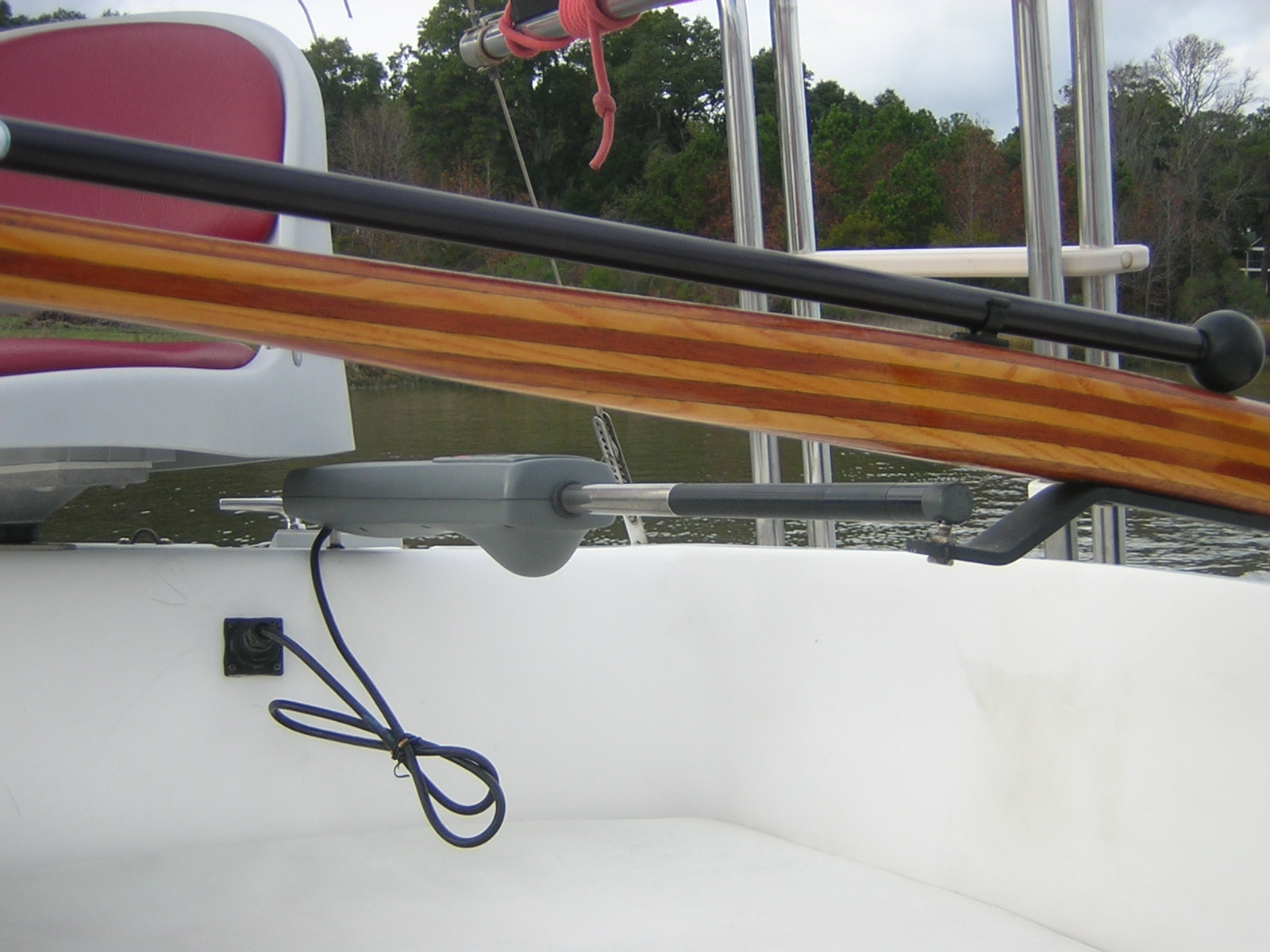

See pics on my installation.
BK

> Date: Sun, 31 Jul 2011 20:20:07 +0000
> From: peterklappert at comcast.net
> To: rhodes22-list at rhodes22.org
> Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
>
>
> Chris--
>
> Thanks. In addition to my cell not working in Edenton, I left my laptop in DC.
>
> How to install/wire the auto-tiller turned out to involve many circular discussions. I was trying to follow Bill Wickman's setup, which is also the one in a PS review of auto-tillers.
>
> But I'm persuaded to install mine as Stan & Mark wanted to all along, using a cantilever bracket that mounts to the cockpit wall/seatback. I assumed the bracket would just be in the way when not using the auto-tiller, but it turns out the bracket's in 2 parts and the bracket itself is removable. The cable to the gps (and to an NMEA receiver if I were installing one) is wired directly to the inside of the socket for the bracket. We're using your suggestion for the power plug.
>
> Despite the heat (103 degrees Friday) my 3rd trip to GB was great. Mostly I went down to bring electronics
> & confer on their installation. It was exciting to finally board my boat, even if it is still inside the factory.
>
> Also got out on Albemarle Sound for some sailing with Stan, who is--of course--a laid-back & very good sailing instructor. Just as fine, finally met the remarkable Rose--indeed, had a dinner of crab-stuffed flounder with the two of them at a place called Waterman's.
>
> I'd been on the R22 3 times before--with Lee, with you at Annapolis, & with Mac McCready and Chris Geankoplis when Chris was in town a few weeks ago. I noticed a pattern: I was always so delighted to be sailing again after a quarter century, and the gear was so foreign to me (the most sophisticated thing I'd ever used was a clam cleat!), that I was too blitzed by it all to absorb anything about actually handling the R22. I think those were necessary preliminary experiences and they certainly were fun, but I was beginning to wonder if I'd ever feel competent on my own. Now I'm very eager to get my boat launched in Apollo Beach.
>
> Best
>
> P
>
>
> >>>>>>o<<<<<<
>
> 2003 Klingle Rd NW
> Washington, DC 20010
> 202 483 3822 C: 202 821 2679
>
> 911 Silver Palm Way
> Apollo Beach, FL 33572
> 813 645 5601 C: 202 821 2679
>
> >>>>>>o<<<<<<
>
> Someone I cared for
>
> Someone I cared for
> put it to me: Who
> do you think you are?
>
> I went down the list
> of all the many
> possibilities
>
> carefully — did it
> twice — but couldn't find
> a plausible one.
>
> That was when I knew
> for the first time who
> in fact I wasn't.
>
> --Cid Corman
>
>
> from And The Word. © Coffee House Press, 1987
>
> ----- Original Message -----
> From: "Chris Cowie" <ccowie at cowieassociates.com>
> To: "The Rhodes 22 Email List" <rhodes22-list at rhodes22.org>
> Sent: Thursday, July 28, 2011 8:31:20 PM
> Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
>
> I had NTS electonics install mine at Herrington Harbor North in Deale Maryland and I think they just followed the diagram to connect the wires. BTW I located my plug for the tiller pillot just under the cockpit bench so it is out of the way and out of the weather and they shortened the cord so I didn't have too much hanging out.
>
> Christopher P. Cowie
>
>
> Please consider the environment before printing this email.
>
>
> -----Original Message-----
> From: rhodes22-list-bounces at rhodes22.org [mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Stan Spitzer
> Sent: Thursday, July 28, 2011 3:05 PM
> To: Bill Wickman c/o The Rhodes 22 Email List
> Subject: [Rhodes22-list] connecting Ray Mareine ST1000
>
> This is Peter Klappert using Stan's Apple computer. I'm in Edenton and
> we are trying to follow Bill Wickman's suggestions for connecting an
> auto tiller to a Garmin GPS--in this case the Raymarine ST1000 to a
> Garmin 541s.
>
> Can it be done without the $100 Garmin starter kit sold by West Marine?
>
> If possible could someone who has done this call Mark (252 339 0400) or
> me or Stan (252 312 9485) at the R22 plant? (My cell doesn't work here.)
>
> Soon?!
>
> Thanks very much
>
> P
>
>
>
