[Rhodes22-list] A tree stand for a Rhodes22 and boat lift

Fri Sep 27 14:16:40 EDT 2013

Rob:
Here is a picture of the lift with reduced resolution - hopefully that will
work.
The picture of your Balboa 26 did not come through when all of your other
pictures made it through fine. I wonder if the problem is with the server
rather than the resolution. My attached photo is only 104 Kb.

Graham

-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org
[mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Rob Granger
Sent: September-27-13 2:01 PM
To: The Rhodes 22 Email List
Subject: Re: [Rhodes22-list] A tree stand for a Rhodes22 and boat lift

Hi Graham

The pics did not come through....

I'd like to see them.  Can you try posting again?  I do a lot of tinkering
with boats and something more permanent might be useful.

Here is a pic of my Balboa 26 lift....  not sexy at all....  :-(

On Fri, Sep 27, 2013 at 10:23 AM, Graham Stewart <gstewart8 at cogeco.ca>wrote:

> Hi Rob:
>
> Actually I got both postings and all photos. These latter shots are
> great and explain what you did very well.
>
> One of the valuable lessons I have learned since joining this last
> over the last year is that I have a tendency to go way overboard on
> everything I do in relation to boats along with the related great
> expenditures of  time and money. I am constantly chagrined to see the
> simple solutions others have found to problems that I have put enormous
energy into - unnecessarily.
> Building a rig to lift the boat off the trailer is no exception. It is
> a bit embarrassing to post a picture and description of the lift I
> built now but It might still be of interest to those interested in
> having a permanent and transportable lift that will raise a variety of
> boats way up - i.e., 5 to
> 6
> feet - for bottom work. Even with this rationale it still looks
> ridiculous now. It is one of those projects that started as a simple
> weekend project and bit by bit grew into something that barely
> resembles what I had in mind initially. I have been obsessing about
> how strong the lift needs to be. You rig gives me some confidence that
> mine should be sufficient and I appreciate that very much. I feel
> safer now that I see that tow straps and a picnic table can  suffice -
> although I realize that you have blocked your boat before you actually
> started working on the hull. There is something about being killed by
> having your boat fall on you that seems reflective of poor seamanship
> to say the least and have peoples' last impression of me as being a
> complete idiot.
>
> I have built the lift for my Rhodes but I will also use for my other
> boats
> -
> a small pontoon boat and a 19' wooden outboard.  In my case I wanted
> to raise the boat very high as I need to get right under the keel to
> work on a big crack that has developed on the very bottom of the keel.
> I didn't want to do that lying on my back with my head under the keel
> and  that weight trying to come down on me. It would have worked but I
lacked the courage.
>

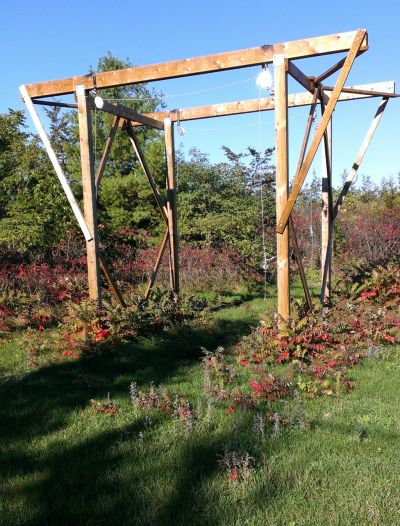

> I have attached a picture of the yet unproven lift. Because of heart
> surgery this year I did  not actually get to use the lift with the
> Rhodes yet although It worked quite nicely with my much lighter
> pontoon boat. The reason that I am posting these specs now is that if
> the thing come down on me next spring you will all know to make yours
> a bit stronger. Otherwise I will post pictures of the boat on the left
> next spring.
>
> What the picture does not show are the lifting slings which are
> endless loop slings rated at #9600. To hoist the boat I will be using
> two 2 ton chain hosts. The cable is 3/16 rated at #2200 working load
> and #4200 breaking.
> There are four of them so that should be sufficient. The 6 blocks are
> rated at 8 tons each which I acknowledge is way overkill but the
> cheaper ones had only 2" sheaves and that takes a significant on on
> the strength of the cable. Given that they cost me $15 on sale there
> was nothing to save going smaller. The legs are 12' 6x6 and the beams
> are made of three 2x8s. In addition to the lifting straps I will have
> two independently rigged #3000 straps similar to yours as a safety.
> Once I have lifted the boat up I plan to attach cross beams under the
> boat to take the weight off the straps and hold the boat steady.
>
> I move the lift using my utility trailer rigged up with two lifting
> arms operated by come-along winches and towed by my 25 year old 12hp
> garden tractor. I use the same rig to move my floating boathouse when
> it is on land.
>
>
>
> Graham
>
> -----Original Message-----
> From: rhodes22-list-bounces at rhodes22.org
> [mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Rob Granger
> Sent: September-26-13 5:58 PM
> To: The Rhodes 22 Email List
> Subject: [Rhodes22-list] A tree stand for a Rhodes22
>
> Hey guys.
>
> I don't know if my last response on this came through or not.  I was
> asked to comment about the stand I made for my Rhodes and I responded
> with a bunch of pics... the post got bounced back because it was too
> large and then I could not find the original in my gMail... so... here
> are a few answers to your questions...
>
> Yes, the back of the boat is sitting on a picnic table.  I backed up
> the boat, lowered the tongue and slid the table underneath, the stern.
> Then I used the trailers jack to lift the tongue as high as it would
> go.  I slipped two tow straps around the boat and tightened them up,
> lowered the tongue and pulled the trailer out.
>
> Next I blocked off the stern, and keel and then took some of the
> pressure off of the tow straps with an auto jack.  I removed one of the
straps.
> The remaining strap is rated at 3000# but it is not holding up the
> entire mass of the boat.  The boat is blocked and the strap provides
> lateral support.  See pics.
>
> I hope I answered all of your questions.  If not just shoot another email.
>
> The other Rob
> -------------- next part -------------- A non-text attachment was
> scrubbed...
> Name: 1111111639.jpg
> Type: image/jpeg
> Size: 899680 bytes
> Desc: not available
> Url :
>
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130926/4
> efef54
> 7/attachment.jpg
> -------------- next part -------------- A non-text attachment was
> scrubbed...
> Name: 1111111639b.jpg
> Type: image/jpeg
> Size: 649323 bytes
> Desc: not available
> Url :
>
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130926/4
> efef54
> 7/attachment-0001.jpg
> -------------- next part -------------- A non-text attachment was
> scrubbed...
> Name: 1112110930.jpg
> Type: image/jpeg
> Size: 603296 bytes
> Desc: not available
> Url :
>
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130926/4
> efef54
> 7/attachment-0002.jpg
> -------------- next part -------------- A non-text attachment was
> scrubbed...
> Name: 1112110953.jpg
> Type: image/jpeg
> Size: 799496 bytes
> Desc: not available
> Url :
>
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130926/4
> efef54
> 7/attachment-0003.jpg
> -------------- next part -------------- A non-text attachment was
> scrubbed...
> Name: before.jpg
> Type: image/jpeg
> Size: 82361 bytes
> Desc: not available
> Url :
>
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130926/4
> efef54
> 7/attachment-0004.jpg
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives
> go to http://www.rhodes22.org/list
> __________________________________________________
> -------------- next part -------------- A non-text attachment was
> scrubbed...
> Name: Boat lift September 2013.jpg
> Type: image/jpeg
> Size: 476108 bytes
> Desc: not available
> Url :
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130927/8
> 385c882/attachment.jpg
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives
> go to http://www.rhodes22.org/list
> __________________________________________________
>

--
Dr. Robert Granger
Department of Chemistry
Sweet Briar College
434-381-6403
rgranger at sbc.edu
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Front.jpg
Type: image/jpeg
Size: 348783 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130927/a688bee
0/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image-5.jpg
Type: image/jpeg
Size: 306088 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130927/a688bee
0/attachment-0001.jpg
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list

For the list Charter and help with using the mailing list and archives go to
http://www.rhodes22.org/list
__________________________________________________
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Boat lift September 2013.jpg
Type: image/jpeg
Size: 106294 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20130927/e15eaeb3/attachment.jpg
