Enclosed is a reprint of an article I published last summer re how we secure Dynamic Equilibrium to its trailer.  Newton's Laws of Motion apply to all objects, all of the time, people.  I hate to say I told you so; but, not tying your boat down to the trailer is a poor decision.

Note the use of the GBI transom & bow lifting eyes & the use of redundant tiedown straps secured low to the strongest parts of the trailer frame.  I believe my tiedown system would have kept the boat and trailer together.

In addition, on Dynamic Equilibrium's trailer hitch, we use an antisway damper.  This device and its benefits have been described many times on this list.  I believe this device would have stopped the trailer's yawing motion before it got out of control and caused the accident.

Roger Pihlaja
S/V Dynamic Equilibrium

From: "keith burkhardt" <mkburk at adelphia.net>
Reply-To: The Rhodes 22 mail list <rhodes22-list at rhodes22.org>
To: <rhodes22-list at rhodes22.org>
Subject: [Rhodes22-list] Elton's excellent adventure
Date: Fri, 30 Jan 2004 22:03:57 -0500

I just got back from the  Chicago boat show.  Elton had the Seaward in tow and it slipped offf the trailer.  He has great pics of this adventure and was able to reload the boat and got it into the show today.  I looked at the Seaward and there appears very little damage.  It was the talk of the show and many folks visited the area..

regards keith

----- Original Message -----
From: Roger Pihlaja
To: The Rhodes 22 mail list
Sent: Friday, August 15, 2003 8:30 PM
Subject: Dynamic Equilibrium's Trailering Tiedown System


Hi Everybody,

A couple of days ago, somebody asked how to safely tiedown their R-22 to their trailer.  The two attached photos show how we do it on Dynamic Equilibrium.

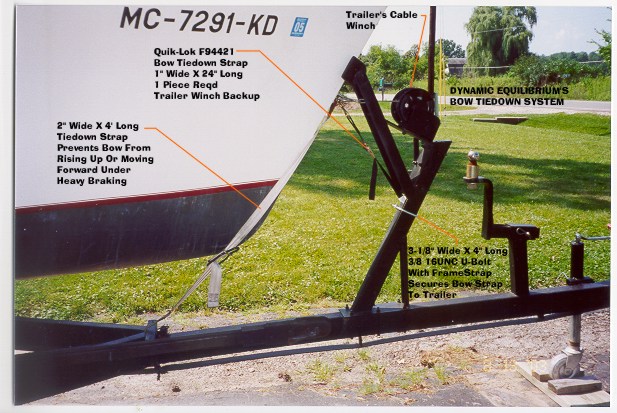

Up on the bow, we use two extra tiedown straps.  One tiedown strap backs up the trailer's winch.  This tiedown strap gets attached to the bow eye as soon as the bow is winched up against the trailer's V-shaped bow stop while the boat is still in the water.  That way, the bow is held solidly against the V-shaped bow stop and there is no possibility of the trailer's winch coming unlatched & allowing the boat to slide backwards off the trailer while it is being pulled up the launch ramp.  The second tiedown strap prevents the bow from rising up or sliding forward under heavy braking.  This second tiedown strap is not attached until the boat & trailer are ready to hit the road.

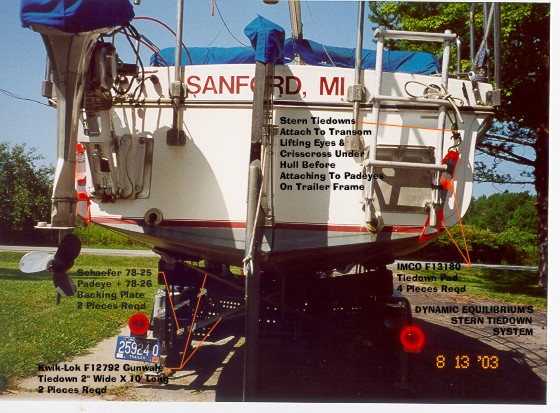

At the stern, we also use two extra tiedown straps.  Note how these tiedown straps attach onto the transom lifting eyes and crisscross under the hull before attaching to a pair of stainless steel padeyes bolted to the trailer's frame.  This crisscross diagonal tiedown arrangement note only secures the stern from rising up or sliding backwards, it also prevents the hull from shifting side-to-side.  Note the use of four IMCO F13180 plastic anti-chafe pads at strategic points to protect the hull.  These two tiedown straps on the stern are normally the last things to be secured before the boat & trailer are ready to hit the road.

All of these pieces/parts are available from West Marine.  Note: You might need slightly different length tiedown straps &/or padeyes to fit your trailer because my trailer is a Lil Dude tandem axle model, not the OEM Triad model.  But, the basic strategy should work as well on the OEM Triad trailers as it does on mine.

It's a pretty quick & effective tiedown system.  We have a lot of launches/retrevals and thousands of trailering miles on ours.

Hopefully this answers your trailering tiedown question.  Enjoy!

Roger Pihlaja
S/V Dynamic Equilibrium
