[Rhodes22-list] Actual boating question

[John Lock]

At 08:59 AM 11/3/2008 -0800, Tom Hogarty wrote:
>I don't think I need a GPS separate for fish, just a good sonar and screen,
>and my experience is that is best when when  you can see it from several
>locations.  I just want that when I fish, not for most sailing and think it
>would be best not permanently mounted.  I am not sure I could use it mounted
>on the bulkhead and viewed from the swivel seats.

I got good results by using a handheld GPS clipped into a base
mount.  I placed this right next to my Hummingbird fishfinder on the
starboard bulkhead.  Both units detach easily for storage (or in the

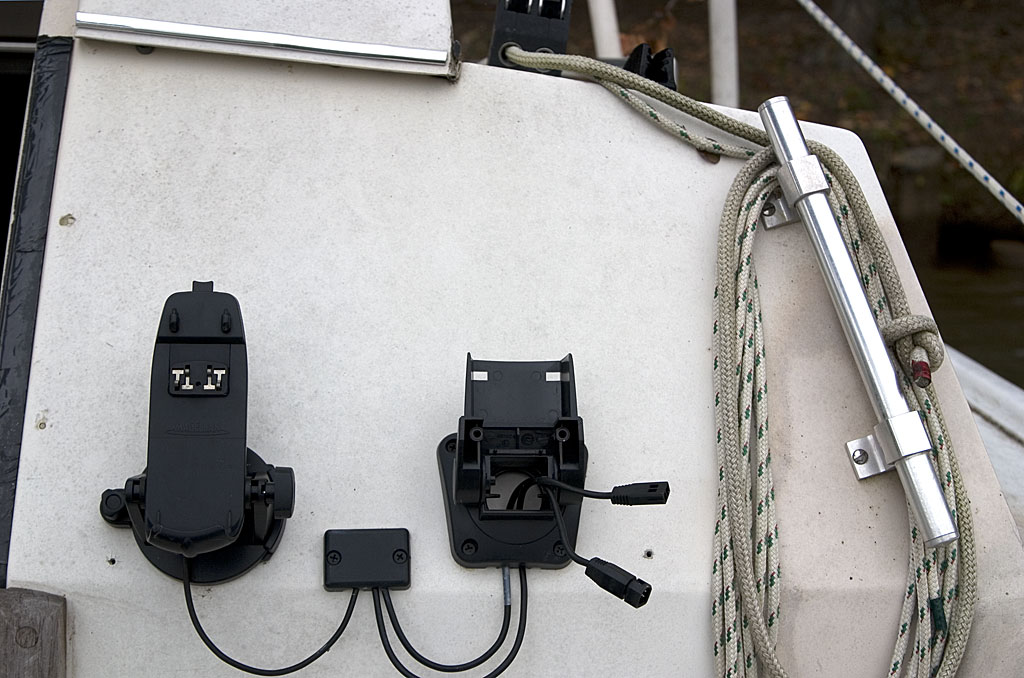

case of the GPS, for use elsewhere).  See attached photos, one of the
mounts and one with the electronics installed.

The transducer for the fishfinder is mounted on the end of a short
length of PVC clamped to the transom.  I can adjust the depth of the
transducer to get still water if it acts up.  But most of the time it
seems to work just fine and I haven't had to adjust it.  FYI - this
unit also provides water temp.

Mostly I use the GPS for speed and time.  One screen display is a
large-digit version with just the essentials on it and that's where I
usually set it.  I can read that from anywhere in the cockpit.  The
fishfinder has a large version of the depth reading that is overlayed
in the corner of the sonar graphic as it paints across.  Again, this
is easily readable from anywhere in the cockpit.

Cheers!

John Lock
~~~~~~~~~~~~~~~~~~
s/v Pandion - '79 Rhodes 22
Lake Sinclair, GA
~~~~~~~~~~~~~~~~~~
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bulkhead_mounts.jpg
Type: image/jpeg
Size: 150822 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20081103/825ed755/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bulkhead_electronics.jpg
Type: image/jpeg
Size: 142705 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20081103/825ed755/attachment-0001.jpg
