[Rhodes22-list] Ques. about mainsheet
jbconnolly at comcast.net
jbconnolly at comcast.net
Tue Mar 31 11:38:22 EDT 2009
This prompted me to remember my 1969 O'Day Mariner 19. This photo is of an an even older one
http://www.iheartodays.com/files/model_mariner_2_601w_773h.jpg
Mainsheet ties to tang on end of boom, then down to turning block on corner of transom, across to opposite block, up to block on end of boom, forward to mid-boom block, down to block and cam cleat on centerboard trunk.
If there were two blocks on the end of the boom, you could rig as an inverted "V" rather than triangle.
Lots of line, lots of drag in light air, not much control.
Jim Connolly
s/v Inisheer
'85 recycled '03
----- Original Message -----
From: "Todd Tavares" <sprocket80 at mail.com>
To: "The Rhodes 22 Email List" <rhodes22-list at rhodes22.org>
Sent: Monday, March 30, 2009 11:33:08 PM GMT -05:00 US/Canada Eastern
Subject: Re: [Rhodes22-list] Ques. about mainsheet
Chris,
I have seen at least three traveler configurations on older boats which
pre-date the "modern" bar style. One was a length of wire attached
between the aft stay chain plates slightly longer that the transom width,
with a traveling sheave and eye. It formed a moving inverted "V"
---without much adjustment or control that attached to the main sheet
cleat block assembly.
Another (I believe this is the type you have) had two pulleys attached to
the stern corners. This set up was basically like two mini boom vang
set-ups attached from the stern corners to the bottom of the main sheet
cleat block assy. You have to uncleat and slacken one side and draw up on
the other. See attached pic.
The third type is like the ones in Mike's pic. I am not sure how it was
adjusted, but have attached a clearer pic of that style too. I hope this
helps
Todd T.
----- Original Message -----
From: "Jim Connolly"
To: "'The Rhodes 22 Email List'"
Subject: Re: [Rhodes22-list] Ques. about mainsheet
Date: Mon, 30 Mar 2009 21:53:14 -0400
I have the current setup with traveler bar. I recalled seeing this
older
setup on the Rhodes22.org web site
http://www.rhodes22.org/rhodes/pics/CONTINENTAL2.jpg
This lacks a traveler bar but still looks like the traveler lines
(for lack
of a better word) are attached to the backstays.
Based on the brown vinyl, hair/beard/big glasses on the fellow on the
left,
I would date this photo to early 80's at the latest.
It's hard to see how a traveler on the after deck would not interfere
with
lifting the tiller/shipping the rudder.
My $0.01 (not even worth 2)
Jim Connolly
s/v Inisheer
'85 recycled '03
-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org
[mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of
ASNOOCH at aol.com
Sent: Monday, March 30, 2009 9:08 PM
To: rhodes22-list at rhodes22.org
Subject: Re: [Rhodes22-list] Ques. about mainsheet
I believe I recall that some of those ships used a wire suspended
from deck
eyes at each end of the transom, each with a small metal block., on
the wire
rode a block that the main sheet hardware was attached too. The
blocks at
either end were part of the hardware that positioned the wire
"traveling"
block that was attached to the main sheet hardware.
Golden Snooch
82 Rhodes, Southold, NY
Burt
In a message dated 3/30/2009 9:00:53 P.M. Eastern Daylight Time,
sail at tds.net writes:
OK, This is a situaton that is definately beyond my pay grade
Fair winds,
>> ron<<
S/V Serenity
Gulfport, FL
On Mon, Mar 30, 2009 at 8:25 PM, Chris Rossman
wrote:
>
> The pulleys I have aren't on the back stays, they are on the
> boat itself on either side next to the rear cleats. There is
> nothing on my stays to
attach
> a traveler bar.
>
> --- On Mon, 3/30/09, sail tds.net wrote:
>
> > From: sail tds.net
> > Subject: Re: [Rhodes22-list] Ques. about mainsheet
> > To: "The Rhodes 22 Email List"
> > Date: Monday, March 30, 2009, 10:25 PM Chris,
> >
> > No, the two pulleys on the back stays are used to adjust the
> twin > back stay tension. There should be two cups below the
> pulleys which > are used to attach the traveler bar.
> >
> > Fair winds,
> >
> > >>ron<<
> > S/V Srenity
> > Gulfport, FL
> >
> > On Mon, Mar 30, 2009 at 5:45 PM, Chris Rossman >
> > wrote:
> >
> > >
> > > I am a new owner of a 1976 Rhodes 22. I am
> > having trouble with my
> > > mainsheet at the end of the boom. I have no traveler bar >
> between the two
> > > backstays. I do have two pulleys on either side
> > of the stern. Are these
> > > used for the mainsheet?
> > >
> > >
> > >
> > >
> > > __________________________________________________
> > > To subscribe/unsubscribe or for help with using the
> > mailing list go to
> > > http://www.rhodes22.org/list
> > > __________________________________________________
> > >
> > __________________________________________________
> > To subscribe/unsubscribe or for help with using the mailing
> list go > to http://www.rhodes22.org/list >
> __________________________________________________
> >
>
>
>
>
>
> __________________________________________________
> To subscribe/unsubscribe or for help with using the mailing list
> go to http://www.rhodes22.org/list
> __________________________________________________
>
__________________________________________________
To subscribe/unsubscribe or for help with using the mailing list go
to
http://www.rhodes22.org/list
__________________________________________________
**************Worried about job security? Check out the 5 safest jobs
in a
recession.
(http://jobs.aol.com/gallery/growing-job-industries?ncid=emlcntuscare0000000
3)
__________________________________________________
To subscribe/unsubscribe or for help with using the mailing list go
to
http://www.rhodes22.org/list
__________________________________________________
__________________________________________________
To subscribe/unsubscribe or for help with using the mailing list go
to http://www.rhodes22.org/list
__________________________________________________
--
Be Yourself @ mail.com!
Choose From 200+ Email Addresses
Get a Free Account at www.mail.com
-------------- next part --------------
A non-text attachment was scrubbed...

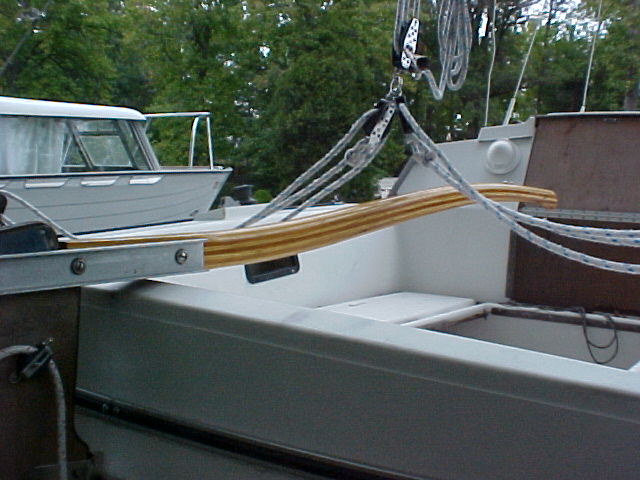

Name: tiller.JPG
Type: image/jpeg
Size: 62211 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20090330/e317457c/attachment.JPG
-------------- next part --------------
A non-text attachment was scrubbed...

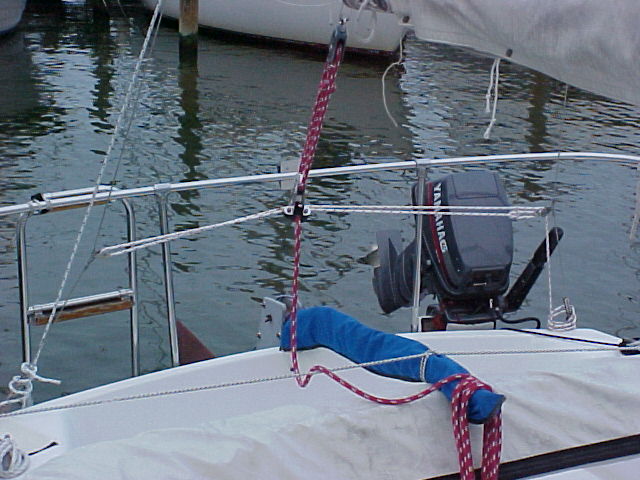

Name: Uhutrav.JPG
Type: image/jpeg
Size: 71130 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20090330/e317457c/attachment-0001.JPG
