[Rhodes22-list] Trouble getting centerboard cap off

[Dana]

I have removed the tube and the pennant is now coming right out of the centerboard cap.  There are no obstructions or fasteners in the way as far as I can see.  It seems like the cap is just stuck to the gasket which is just stuck to the trunk.  I was able to peel the front part of the cap up because it is somewhat flexible.  Peeling it up the rest doesn't want to work because it is so rigid.

--- On Sun, 10/25/09, sprocket80 at mail.com <sprocket80 at mail.com> wrote:

From: sprocket80 at mail.com <sprocket80 at mail.com>
Subject: Re: [Rhodes22-list] Trouble getting centerboard cap off
To: rhodes22-list at rhodes22.org
Date: Sunday, October 25, 2009, 6:28 AM

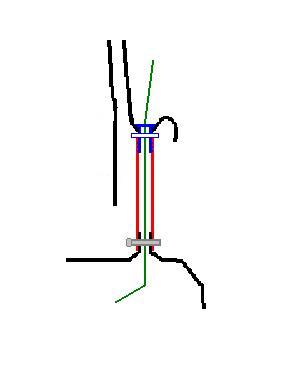

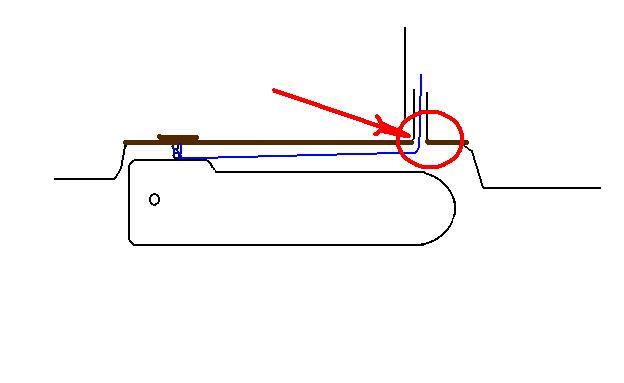

 I can't remember without looking but I think you need to first remove or disconnect the tube for the cb pennant which goes from the top aft end of the cap, up to the bottom of the cockpit gutter just below the hatchway where the cb line comes up in the cockpit..  It goes up behind the aft wall.

 see attached drawings



-----Original Message-----
From: Dana <realnamen at yahoo.com>http://web.mail.com/28789/mmc-2/en-us/Suite.aspx
To: rhodes22-list at rhodes22.org
Sent: Sun, Oct 25, 2009 12:20 am
Subject: [Rhodes22-list] Trouble getting centerboard cap off










I have removed all of the screws from the centerboard cap and the front flat
portion of the cap will lift up, but the rear portion of the cap is stuck
tight.  There doesn't appear to be any sealant on the gasket.  The gasket seems
very pliable.  I'm afraid to pry too much or do anything that might compromise
the gasket.  Any ideas?




__________________________________________________
To subscribe/unsubscribe go to http://www.rhodes22.org/mailman/listinfo/rhodes22-list

For the list Charter and help with using the mailing list and archives go to
http://www.rhodes22.org/list
__________________________________________________





-------------- next part --------------
A non-text attachment was scrubbed...
Name: cb1.JPG
Type: image/jpeg
Size: 12915 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20091025/ee990882/attachment.JPG
-------------- next part --------------
A non-text attachment was scrubbed...
Name: cb hose detail.jpg
Type: image/jpeg
Size: 6573 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20091025/ee990882/attachment.jpg
