Hi Bill,

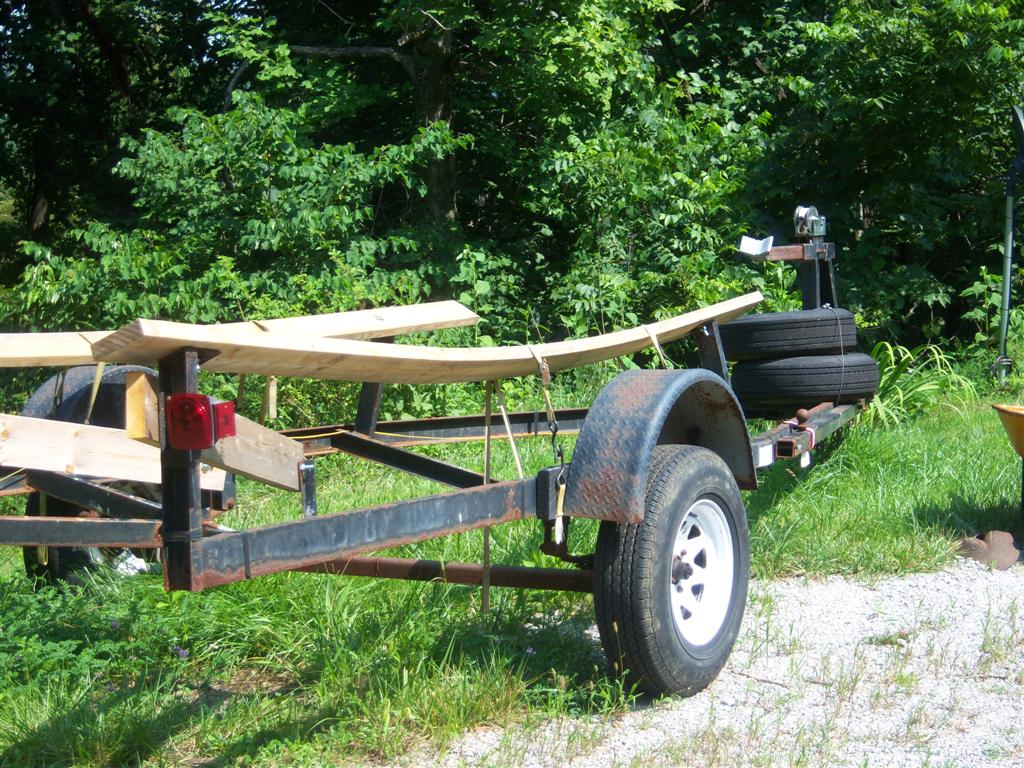

My bunks are also 2x6's and something you might want to check is the
brackets or plates that hold the bunks to the trailer are slotted and allow
the bunks to form to the bottom of the boat and should not be so tight as to
restrict movement. Also if the boards were replaced and not pre-bowed to the
shape of the boat before drilling the bolt holes the bolts may be against
the end of the slot in the brackets. This will cause the bunks to be to
flat and the boat will rest on the ends of the bunks and not evenly along
the entire length.
Jim Lamos
s/v Cruzan The Rhodes
-----Original Message-----
From: rhodes22-list-request at rhodes22.org
Sent: Monday, August 01, 2011 12:00 PM
To: rhodes22-list at rhodes22.org
Subject: Rhodes22-list Digest, Vol 2621, Issue 1
Send Rhodes22-list mailing list submissions to
rhodes22-list at rhodes22.org
To subscribe or unsubscribe via the World Wide Web, visit
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
or, via email, send a message with subject or body 'help' to
rhodes22-list-request at rhodes22.org
You can reach the person managing the list at
rhodes22-list-owner at rhodes22.org
When replying, please edit your Subject line so it is more specific
than "Re: Contents of Rhodes22-list digest..."
Today's Topics:
1. Hull Indention (Bill Pauer)
2. Re: Hull Indention (Caesar Paul)
3. Re: connecting Ray Marine ST1000 (peter klappert)
4. Catch for pop top slider (Jim Connolly)
5. Re: connecting Ray Marine ST1000 (Bob Keller)

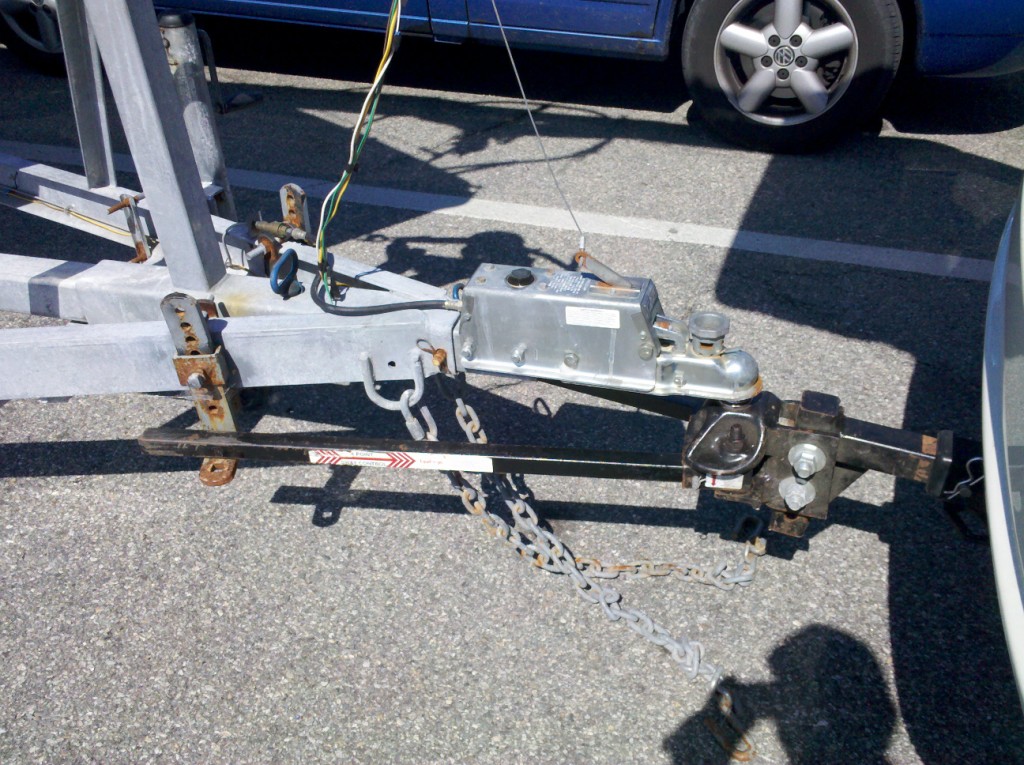

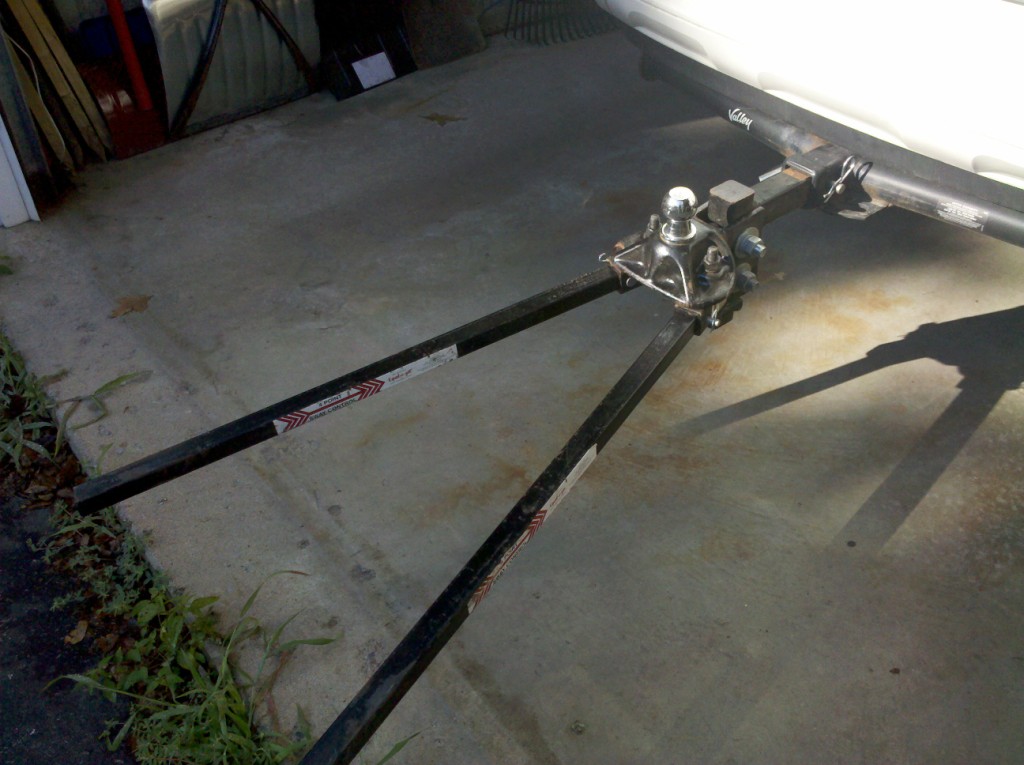

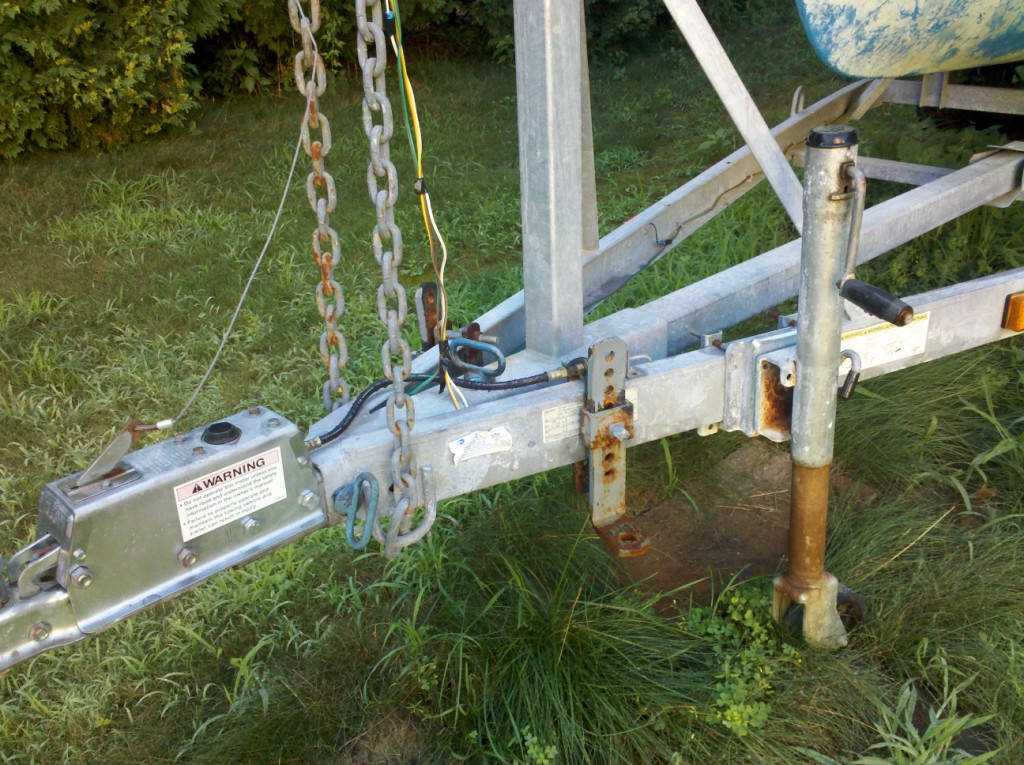

6. Towing with a weight distributing hitch (Jim Connolly)
7. Re: Hull Indention (Cover-man)
8. Re: connecting Ray Marine ST1000 (peter klappert)
9. Re: connecting Ray Marine ST1000 (R22RumRunner at aol.com)
10. Re: Hull Indention (Lowe, Rob)
11. main sail batten (Robert O Baldi)
----------------------------------------------------------------------
Message: 1
Date: Sun, 31 Jul 2011 12:11:50 -0400
From: Bill Pauer <billpauer at gmail.com>
Subject: [Rhodes22-list] Hull Indention
To: rhodes22-list at rhodes22.org
Cc: Bill Pauer <billpauer at gmail.com>
Message-ID: <CB874300-4449-491A-86E4-C934B04A8E99 at gmail.com>
Content-Type: text/plain; charset="us-ascii"
The hull of our 1980 Rhodes is being indented while on the trailer. I
don't know the history of the boat or the trailer, but am guessing the
trailer is the original, and looks like someone has recently reworked
it. The hull is being pushed in near the front support. While
difficult to measure the indention it seems to vary from 3/16" to
nearly a 1/2". Yesterday I spent an hour moving the boat forwards and
backwards on the trailer to find a spot that reduced the denting.
While moving the boat back on the trailer eventually did reduce the
denting, the boat was too far back and caused too much swaying while
on the road.
The support boards look to be pressure treated 2x4s. Is the the
typical size? I was thinking of redoing them with wider material
(2x10 ?) to spread the load. Any thoughts?
Thanks---
Bill
-------------- next part --------------
A non-text attachment was scrubbed...
Name: photo.jpg
Type: image/jpeg
Size: 329293 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/d01fa57f/attachment.jpg
-------------- next part --------------
------------------------------
Message: 2
Date: Sun, 31 Jul 2011 11:55:54 -0700 (PDT)
From: Caesar Paul <caesarpaul01 at yahoo.com>
Subject: Re: [Rhodes22-list] Hull Indention
To: The Rhodes 22 Email List <rhodes22-list at rhodes22.org>
Message-ID:
<1312138554.61450.YahooMailNeo at web34507.mail.mud.yahoo.com>
Content-Type: text/plain; charset=iso-8859-1
Bill ,Guys,
?
I have the same problem?at the same location on both the port on starboard
side.??My boat is an 86.
?
Two seasons ago I glassed in Fiberglas rib as a stiffener to prevent that
indentation on the port side.
I'm wondering if lengthening that 2 x 6 board would solve the problem.
I'm thinking about installing a support ?bracket along the center-line of
the trailer to support the bow and take some of the weight of the problem
area, but am uncertain about if it?would help.
I've have not heard or read of this problem on the list, and wondered if I
was the only one with this particular problem.
?
I'm all ears to learn how many of us have experienced this problem, and, how
is it addressed.
?
Caesar Paul
Gentle Breeze
?
From: Bill Pauer <billpauer at gmail.com>
To: rhodes22-list at rhodes22.org
Cc: Bill Pauer <billpauer at gmail.com>
Sent: Sunday, July 31, 2011 9:11 AM
Subject: [Rhodes22-list] Hull Indention
The hull of our 1980 Rhodes is being indented while on the trailer.? I?
don't know the history of the boat or the trailer, but am guessing the?
trailer is the original, and looks like someone has recently reworked?
it.? The hull is being pushed in near the front support.? While?
difficult to measure the indention it seems to vary from 3/16" to?
nearly a 1/2".? Yesterday I spent an hour moving the boat forwards and?
backwards on the trailer to find a spot that reduced the denting.?
While moving the boat back on the trailer eventually did reduce the?
denting, the boat was too far back and caused too much swaying while?
on the road.
The support boards look to be pressure treated 2x4s.? Is the the?
typical size?? I was thinking of redoing them with wider material?
(2x10 ?) to spread the load.? Any thoughts?
Thanks---
Bill
-------------- next part --------------
A non-text attachment was scrubbed...
Name: photo.jpg
Type: image/jpeg
Size: 329293 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/d01fa57f/attachment.jpg
-------------- next part --------------
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
For the list Charter and help with using the mailing list and archives go to
http://www.rhodes22.org/list
__________________________________________________
------------------------------
Message: 3
Date: Sun, 31 Jul 2011 20:20:07 +0000 (UTC)
From: peter klappert <peterklappert at comcast.net>
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
To: The Rhodes 22 Email List <rhodes22-list at rhodes22.org>
Message-ID:
<2025908318.14284.1312143607922.JavaMail.root at sz0122a.westchester.pa.mail.comcast.net>
Content-Type: text/plain; charset=utf-8
Chris--
Thanks. In addition to my cell not working in Edenton, I left my laptop in
DC.
How to install/wire the auto-tiller turned out to involve many circular
discussions. I was trying to follow Bill Wickman's setup, which is also the

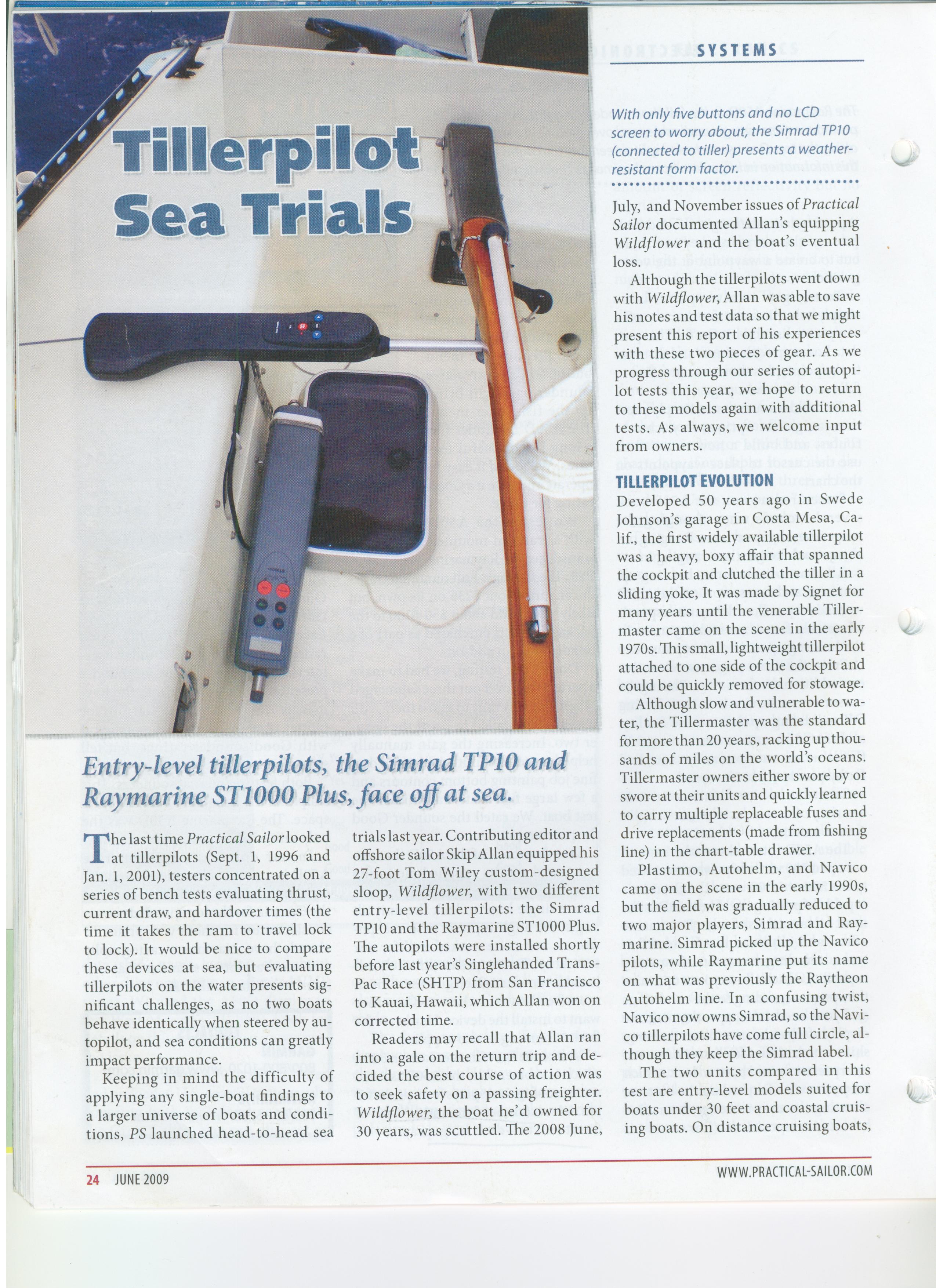

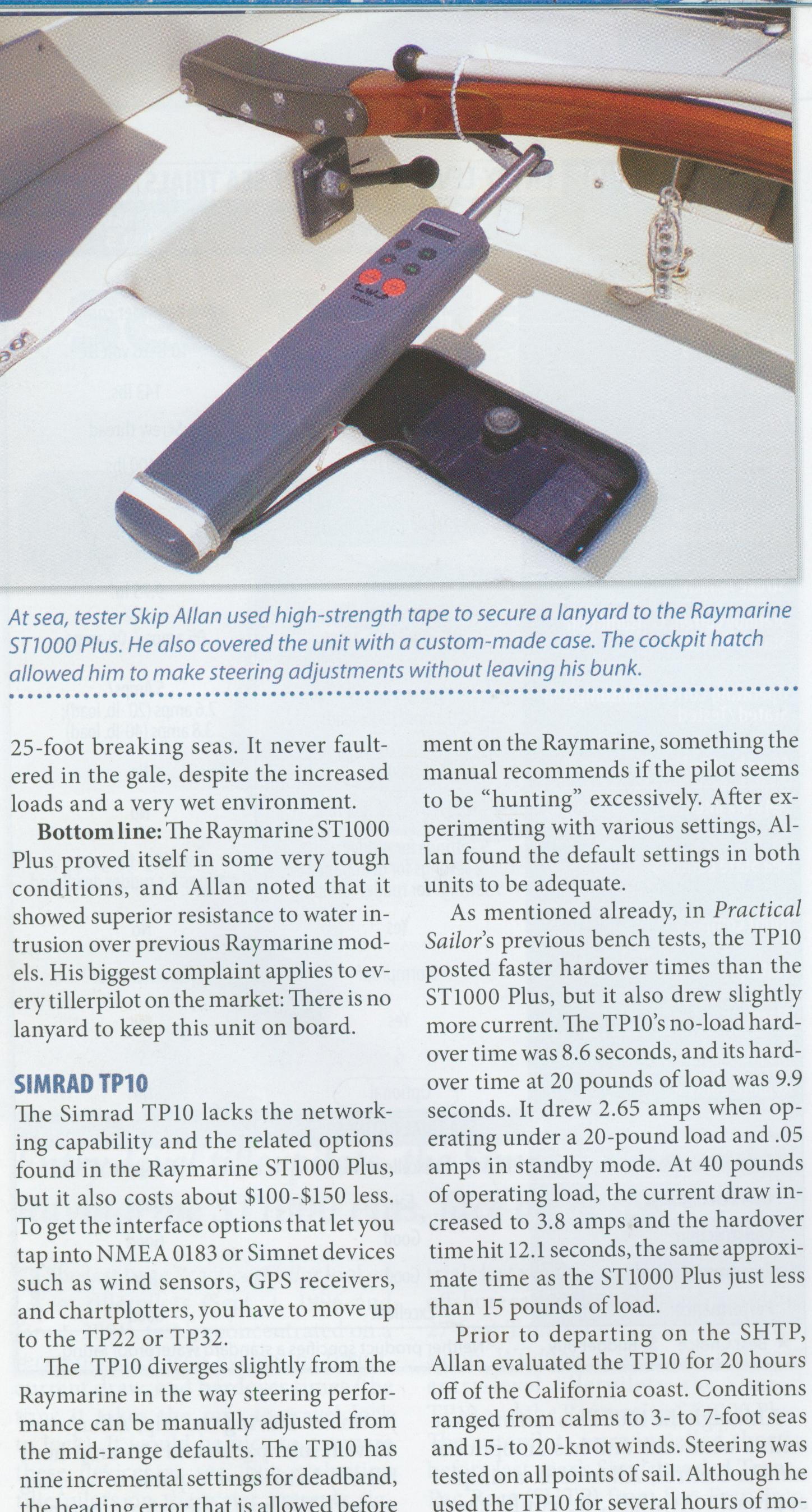

one in a PS review of auto-tillers.
But I'm persuaded to install mine as Stan & Mark wanted to all along, using
a cantilever bracket that mounts to the cockpit wall/seatback. I assumed the
bracket would just be in the way when not using the auto-tiller, but it
turns out the bracket's in 2 parts and the bracket itself is removable. The
cable to the gps (and to an NMEA receiver if I were installing one) is wired
directly to the inside of the socket for the bracket. We're using your
suggestion for the power plug.
Despite the heat (103 degrees Friday) my 3rd trip to GB was great. Mostly I
went down to bring electronics
& confer on their installation. It was exciting to finally board my boat,
even if it is still inside the factory.
Also got out on Albemarle Sound for some sailing with Stan, who is--of
course--a laid-back & very good sailing instructor. Just as fine, finally
met the remarkable Rose--indeed, had a dinner of crab-stuffed flounder with
the two of them at a place called Waterman's.
I'd been on the R22 3 times before--with Lee, with you at Annapolis, & with
Mac McCready and Chris Geankoplis when Chris was in town a few weeks ago. I
noticed a pattern: I was always so delighted to be sailing again after a
quarter century, and the gear was so foreign to me (the most sophisticated
thing I'd ever used was a clam cleat!), that I was too blitzed by it all to
absorb anything about actually handling the R22. I think those were
necessary preliminary experiences and they certainly were fun, but I was
beginning to wonder if I'd ever feel competent on my own. Now I'm very eager
to get my boat launched in Apollo Beach.
Best
P
>>>>>>o<<<<<<
2003 Klingle Rd NW
Washington, DC 20010
202 483 3822 C: 202 821 2679
911 Silver Palm Way
Apollo Beach, FL 33572
813 645 5601 C: 202 821 2679
>>>>>>o<<<<<<
Someone I cared for
Someone I cared for
put it to me: Who
do you think you are?
I went down the list
of all the many
possibilities
carefully ? did it
twice ? but couldn't find
a plausible one.
That was when I knew
for the first time who
in fact I wasn't.
--Cid Corman
from And The Word. ? Coffee House Press, 1987
----- Original Message -----
From: "Chris Cowie" <ccowie at cowieassociates.com>
To: "The Rhodes 22 Email List" <rhodes22-list at rhodes22.org>
Sent: Thursday, July 28, 2011 8:31:20 PM
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
I had NTS electonics install mine at Herrington Harbor North in Deale
Maryland and I think they just followed the diagram to connect the wires.
BTW I located my plug for the tiller pillot just under the cockpit bench so
it is out of the way and out of the weather and they shortened the cord so I
didn't have too much hanging out.
Christopher P. Cowie? ??
Please consider the environment before printing this email.
-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org
[mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Stan Spitzer
Sent: Thursday, July 28, 2011 3:05 PM
To: Bill Wickman c/o The Rhodes 22 Email List
Subject: [Rhodes22-list] connecting Ray Mareine ST1000
This is Peter Klappert using Stan's Apple computer. I'm in Edenton and
we are trying to follow Bill Wickman's suggestions for connecting an
auto tiller to a Garmin GPS--in this case the Raymarine ST1000 to a
Garmin 541s.
Can it be done without the $100 Garmin starter kit sold by West Marine?
If possible could someone who has done this call Mark (252 339 0400) or
me or Stan (252 312 9485) at the R22 plant? (My cell doesn't work here.)
Soon?!
Thanks very much
P
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
For the list Charter and help with using the mailing list and archives go to
http://www.rhodes22.org/list
__________________________________________________
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
For the list Charter and help with using the mailing list and archives go to
http://www.rhodes22.org/list
__________________________________________________
------------------------------
Message: 4
Date: Sun, 31 Jul 2011 16:39:17 -0400
From: "Jim Connolly" <jbconnolly at comcast.net>
Subject: [Rhodes22-list] Catch for pop top slider
To: "'The Rhodes 22 Email List'" <rhodes22-list at rhodes22.org>
Message-ID: <000901cc4fc1$f0c3ada0$d24b08e0$@net>
Content-Type: text/plain; charset="us-ascii"

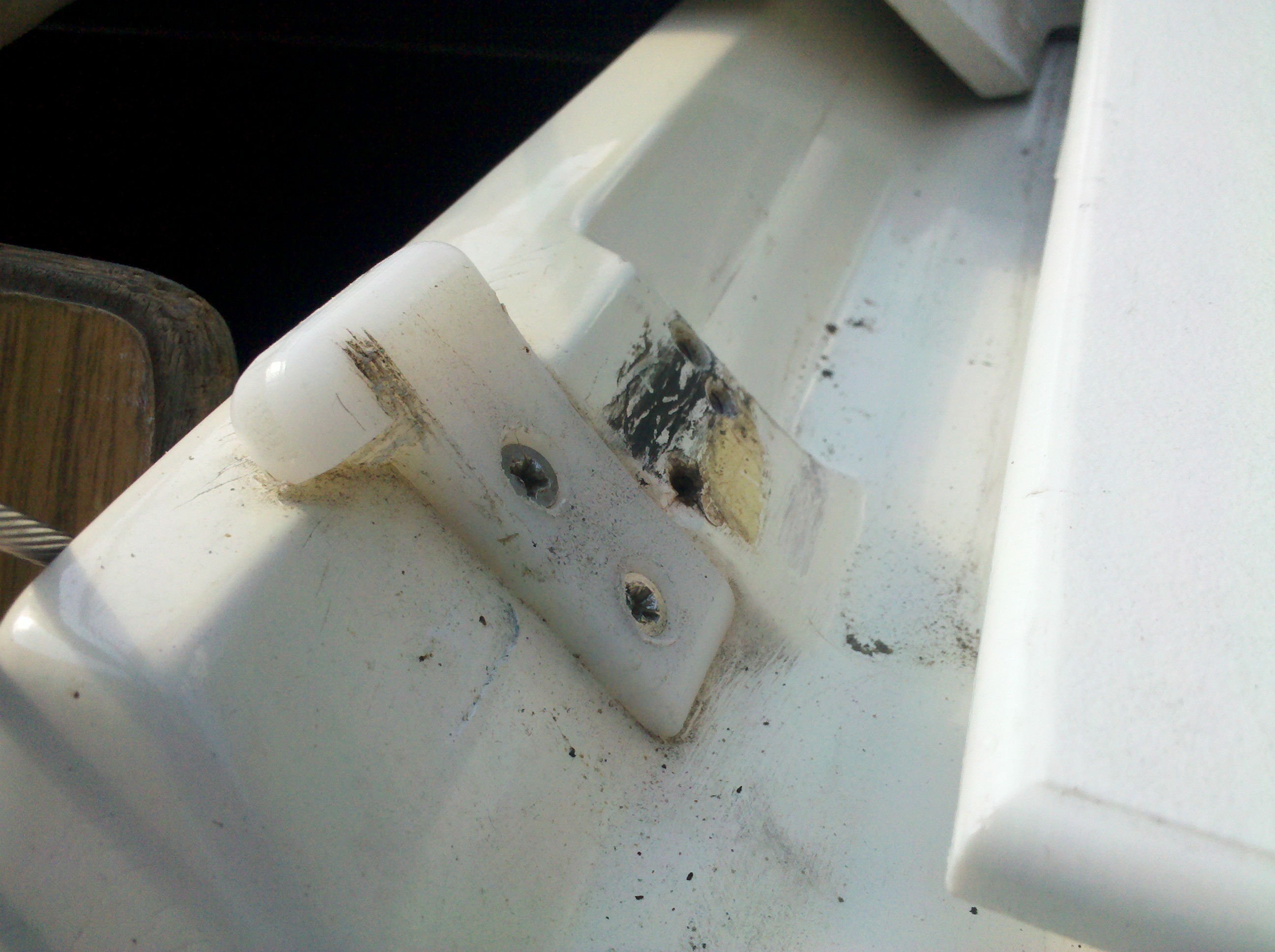

This is a photo of the little piece of HDPE I got from Stan to correct the
pop top slider not locking.
Jim Connolly
s/v Inisheer
'85 recycled '03
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_20110728_164910.jpg
Type: image/jpeg
Size: 901487 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/386a8815/attachment.jpg
------------------------------
Message: 5
Date: Sun, 31 Jul 2011 18:18:55 -0400
From: Bob Keller <r22yankeeclipper at hotmail.com>
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
To: <rhodes22-list at rhodes22.org>
Message-ID: <SNT131-W62BF143B953AE72C8D6497D1390 at phx.gbl>
Content-Type: text/plain; charset="windows-1252"
Peter,
See pics on my installation.
BK
> Date: Sun, 31 Jul 2011 20:20:07 +0000
> From: peterklappert at comcast.net
> To: rhodes22-list at rhodes22.org
> Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
>
>
> Chris--
>
> Thanks. In addition to my cell not working in Edenton, I left my laptop in
> DC.
>
> How to install/wire the auto-tiller turned out to involve many circular
> discussions. I was trying to follow Bill Wickman's setup, which is also
> the one in a PS review of auto-tillers.
>
> But I'm persuaded to install mine as Stan & Mark wanted to all along,
> using a cantilever bracket that mounts to the cockpit wall/seatback. I
> assumed the bracket would just be in the way when not using the
> auto-tiller, but it turns out the bracket's in 2 parts and the bracket
> itself is removable. The cable to the gps (and to an NMEA receiver if I
> were installing one) is wired directly to the inside of the socket for the
> bracket. We're using your suggestion for the power plug.
>
> Despite the heat (103 degrees Friday) my 3rd trip to GB was great. Mostly
> I went down to bring electronics
> & confer on their installation. It was exciting to finally board my boat,
> even if it is still inside the factory.
>
> Also got out on Albemarle Sound for some sailing with Stan, who is--of
> course--a laid-back & very good sailing instructor. Just as fine, finally
> met the remarkable Rose--indeed, had a dinner of crab-stuffed flounder
> with the two of them at a place called Waterman's.
>
> I'd been on the R22 3 times before--with Lee, with you at Annapolis, &
> with Mac McCready and Chris Geankoplis when Chris was in town a few weeks
> ago. I noticed a pattern: I was always so delighted to be sailing again
> after a quarter century, and the gear was so foreign to me (the most
> sophisticated thing I'd ever used was a clam cleat!), that I was too
> blitzed by it all to absorb anything about actually handling the R22. I
> think those were necessary preliminary experiences and they certainly were
> fun, but I was beginning to wonder if I'd ever feel competent on my own.
> Now I'm very eager to get my boat launched in Apollo Beach.
>
> Best
>
> P
>
>
> >>>>>>o<<<<<<
>
> 2003 Klingle Rd NW
> Washington, DC 20010
> 202 483 3822 C: 202 821 2679
>
> 911 Silver Palm Way
> Apollo Beach, FL 33572
> 813 645 5601 C: 202 821 2679
>
> >>>>>>o<<<<<<
>
> Someone I cared for
>
> Someone I cared for
> put it to me: Who
> do you think you are?
>
> I went down the list
> of all the many
> possibilities
>
> carefully ? did it
> twice ? but couldn't find
> a plausible one.
>
> That was when I knew
> for the first time who
> in fact I wasn't.
>
> --Cid Corman
>
>
> from And The Word. ? Coffee House Press, 1987
>
> ----- Original Message -----
> From: "Chris Cowie" <ccowie at cowieassociates.com>
> To: "The Rhodes 22 Email List" <rhodes22-list at rhodes22.org>
> Sent: Thursday, July 28, 2011 8:31:20 PM
> Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
>
> I had NTS electonics install mine at Herrington Harbor North in Deale
> Maryland and I think they just followed the diagram to connect the wires.
> BTW I located my plug for the tiller pillot just under the cockpit bench
> so it is out of the way and out of the weather and they shortened the cord
> so I didn't have too much hanging out.
>
> Christopher P. Cowie
>
>
> Please consider the environment before printing this email.
>
>
> -----Original Message-----
> From: rhodes22-list-bounces at rhodes22.org
> [mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Stan Spitzer
> Sent: Thursday, July 28, 2011 3:05 PM
> To: Bill Wickman c/o The Rhodes 22 Email List
> Subject: [Rhodes22-list] connecting Ray Mareine ST1000
>
> This is Peter Klappert using Stan's Apple computer. I'm in Edenton and
> we are trying to follow Bill Wickman's suggestions for connecting an
> auto tiller to a Garmin GPS--in this case the Raymarine ST1000 to a
> Garmin 541s.
>
> Can it be done without the $100 Garmin starter kit sold by West Marine?
>
> If possible could someone who has done this call Mark (252 339 0400) or
> me or Stan (252 312 9485) at the R22 plant? (My cell doesn't work here.)
>
> Soon?!
>
> Thanks very much
>
> P
>
>
>
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives go
> to http://www.rhodes22.org/list
> __________________________________________________
>
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives go
> to http://www.rhodes22.org/list
> __________________________________________________
>
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives go
> to http://www.rhodes22.org/list
> __________________________________________________
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCN1261.JPG
Type: image/jpeg
Size: 339071 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/ba51e90c/attachment.JPG
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCN1262.JPG
Type: image/jpeg
Size: 324421 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/ba51e90c/attachment-0001.JPG
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCN1264.JPG
Type: image/jpeg
Size: 334310 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/ba51e90c/attachment-0002.JPG
------------------------------
Message: 6
Date: Sun, 31 Jul 2011 18:33:26 -0400
From: "Jim Connolly" <jbconnolly at comcast.net>
Subject: [Rhodes22-list] Towing with a weight distributing hitch
To: "'The Rhodes 22 Email List'" <rhodes22-list at rhodes22.org>
Message-ID: <000001cc4fd1$def83770$9ce8a650$@net>
Content-Type: text/plain; charset="us-ascii"
Someone asked about this last year and I promised to send pictures but never
did.
Well, here are some. Photo 1 is an an Equal-i-zer sway control weight
distributing hitch. It has two anti-sway bars that rest on "L" brackets
bolted to the trailer frame (photo 2). They are further restrained by
smaller inverted "L" clips that box in the sway bars. These are not
installed in the third photo, as I had already started to unhook to extend
the trailer tongue. It does not seem to interfere with the surge brakes.
Hope this helps
Jim Connolly
s/v Inisheer
'85 recycled '03
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 1.jpg
Type: image/jpeg
Size: 153167 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/d433e700/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 2.jpg
Type: image/jpeg
Size: 274842 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/d433e700/attachment-0001.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 3.jpg
Type: image/jpeg
Size: 255820 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/d433e700/attachment-0002.jpg
------------------------------
Message: 7
Date: Sun, 31 Jul 2011 20:03:59 -0400
From: Cover-man <cover-man at comcast.net>
Subject: Re: [Rhodes22-list] Hull Indention
To: The Rhodes 22 Email List <rhodes22-list at rhodes22.org>
Message-ID: <A63707FD-BB7B-4545-A94B-FB184340F26D at comcast.net>
Content-Type: text/plain; charset=us-ascii
Triad trailer?
Have a nice day!
On Jul 31, 2011, at 2:55 PM, Caesar Paul <caesarpaul01 at yahoo.com> wrote:
> Bill ,Guys,
>
> I have the same problem at the same location on both the port on starboard
> side. My boat is an 86.
>
> Two seasons ago I glassed in Fiberglas rib as a stiffener to prevent that
> indentation on the port side.
> I'm wondering if lengthening that 2 x 6 board would solve the problem.
> I'm thinking about installing a support bracket along the center-line of
> the trailer to support the bow and take some of the weight of the problem
> area, but am uncertain about if it would help.
> I've have not heard or read of this problem on the list, and wondered if I
> was the only one with this particular problem.
>
> I'm all ears to learn how many of us have experienced this problem, and,
> how is it addressed.
>
> Caesar Paul
> Gentle Breeze
>
>
> From: Bill Pauer <billpauer at gmail.com>
> To: rhodes22-list at rhodes22.org
> Cc: Bill Pauer <billpauer at gmail.com>
> Sent: Sunday, July 31, 2011 9:11 AM
> Subject: [Rhodes22-list] Hull Indention
>
>
>
> The hull of our 1980 Rhodes is being indented while on the trailer. I
> don't know the history of the boat or the trailer, but am guessing the
> trailer is the original, and looks like someone has recently reworked
> it. The hull is being pushed in near the front support. While
> difficult to measure the indention it seems to vary from 3/16" to
> nearly a 1/2". Yesterday I spent an hour moving the boat forwards and
> backwards on the trailer to find a spot that reduced the denting.
> While moving the boat back on the trailer eventually did reduce the
> denting, the boat was too far back and caused too much swaying while
> on the road.
> The support boards look to be pressure treated 2x4s. Is the the
> typical size? I was thinking of redoing them with wider material
> (2x10 ?) to spread the load. Any thoughts?
> Thanks---
> Bill
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: photo.jpg
> Type: image/jpeg
> Size: 329293 bytes
> Desc: not available
> Url :
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110731/d01fa57f/attachment.jpg
> -------------- next part --------------
>
>
>
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives go
> to http://www.rhodes22.org/list
> __________________________________________________
> __________________________________________________
> To subscribe/unsubscribe go to
> http://www.rhodes22.org/mailman/listinfo/rhodes22-list
>
> For the list Charter and help with using the mailing list and archives go
> to http://www.rhodes22.org/list
> __________________________________________________
------------------------------
Message: 8
Date: Mon, 1 Aug 2011 05:19:08 +0000 (UTC)
From: peter klappert <peterklappert at comcast.net>
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
To: The Rhodes 22 Email List <rhodes22-list at rhodes22.org>
Message-ID:
<1843219918.27899.1312175948530.JavaMail.root at sz0122a.westchester.pa.mail.comcast.net>
Content-Type: text/plain; charset="utf-8"
Bob--
Thanks for the photos. Your installation looks like Bill Wickman's setup &
Bill's looks like photos in a Practical Sailor review. I spent a lot of
electrons trying to persuade Stan (&, via Stan, Mark) that that's the way to
do it. I also provided a variety of absurdly expensive push-rod extensions
in order to make that arrangement work.
As I said in the reply to Chris Cowie, while at General Boats I finally
grasped the feasibility/practicality of their approach & I guess that's how
I'll go. In 3-4 months, if asked, I can report how well the cantilever
bracket setup works. Or doesn't.
Bill W has already sent the list a fine, detailed description of his
installation, with photos. For anyone interested, I attach the PS review
(with similar photos) and a Raymarine drawing of the cantilever mounting
bracket in action.
Thanks again,
P
----- Original Message -----
From: "Bob Keller" <r22yankeeclipper at hotmail.com>
To: rhodes22-list at rhodes22.org
Sent: Sunday, July 31, 2011 9:18:55 PM
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
Peter,
See pics on my installation.
BK
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Image (2).jpg
Type: image/jpeg
Size: 671738 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110801/7b1f1fc5/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Image.jpg
Type: image/jpeg
Size: 1302830 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110801/7b1f1fc5/attachment-0001.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ST1000 cantilever mounting socket.gif
Type: image/gif
Size: 13444 bytes
Desc: not available
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110801/7b1f1fc5/attachment.gif
------------------------------
Message: 9
Date: Mon, 1 Aug 2011 06:43:40 -0400 (EDT)
From: R22RumRunner at aol.com
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
To: rhodes22-list at rhodes22.org
Message-ID: <15de3.3adc7757.3b67dd5c at aol.com>
Content-Type: text/plain; charset="UTF-8"
Peter,
The best way to get "blitzed" on a R22 is with rum.
Rummy
In a message dated 7/31/2011 4:20:24 P.M. Eastern Daylight Time,
peterklappert at comcast.net writes:
Chris--
Thanks. In addition to my cell not working in Edenton, I left my laptop in
DC.
How to install/wire the auto-tiller turned out to involve many circular
discussions. I was trying to follow Bill Wickman's setup, which is also the
one in a PS review of auto-tillers.
But I'm persuaded to install mine as Stan & Mark wanted to all along,
using a cantilever bracket that mounts to the cockpit wall/seatback. I
assumed
the bracket would just be in the way when not using the auto-tiller, but it
turns out the bracket's in 2 parts and the bracket itself is removable.
The cable to the gps (and to an NMEA receiver if I were installing one) is
wired directly to the inside of the socket for the bracket. We're using
your
suggestion for the power plug.
Despite the heat (103 degrees Friday) my 3rd trip to GB was great. Mostly
I went down to bring electronics
& confer on their installation. It was exciting to finally board my boat,
even if it is still inside the factory.
Also got out on Albemarle Sound for some sailing with Stan, who is--of
course--a laid-back & very good sailing instructor. Just as fine, finally
met
the remarkable Rose--indeed, had a dinner of crab-stuffed flounder with the
two of them at a place called Waterman's.
I'd been on the R22 3 times before--with Lee, with you at Annapolis, &
with Mac McCready and Chris Geankoplis when Chris was in town a few weeks
ago.
I noticed a pattern: I was always so delighted to be sailing again after a
quarter century, and the gear was so foreign to me (the most sophisticated
thing I'd ever used was a clam cleat!), that I was too blitzed by it all
to absorb anything about actually handling the R22. I think those were
necessary preliminary experiences and they certainly were fun, but I was
beginning to wonder if I'd ever feel competent on my own. Now I'm very
eager to
get my boat launched in Apollo Beach.
Best
P
>>>>>>o<<<<<<
2003 Klingle Rd NW
Washington, DC 20010
202 483 3822 C: 202 821 2679
911 Silver Palm Way
Apollo Beach, FL 33572
813 645 5601 C: 202 821 2679
>>>>>>o<<<<<<
Someone I cared for
Someone I cared for
put it to me: Who
do you think you are?
I went down the list
of all the many
possibilities
carefully ? did it
twice ? but couldn't find
a plausible one.
That was when I knew
for the first time who
in fact I wasn't.
--Cid Corman
from And The Word. ? Coffee House Press, 1987
----- Original Message -----
From: "Chris Cowie" <ccowie at cowieassociates.com>
To: "The Rhodes 22 Email List" <rhodes22-list at rhodes22.org>
Sent: Thursday, July 28, 2011 8:31:20 PM
Subject: Re: [Rhodes22-list] connecting Ray Marine ST1000
I had NTS electonics install mine at Herrington Harbor North in Deale
Maryland and I think they just followed the diagram to connect the wires.
BTW
I located my plug for the tiller pillot just under the cockpit bench so it
is out of the way and out of the weather and they shortened the cord so I
didn't have too much hanging out.
Christopher P. Cowie
Please consider the environment before printing this email.
-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org
[mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Stan Spitzer
Sent: Thursday, July 28, 2011 3:05 PM
To: Bill Wickman c/o The Rhodes 22 Email List
Subject: [Rhodes22-list] connecting Ray Mareine ST1000
This is Peter Klappert using Stan's Apple computer. I'm in Edenton and
we are trying to follow Bill Wickman's suggestions for connecting an
auto tiller to a Garmin GPS--in this case the Raymarine ST1000 to a
Garmin 541s.
Can it be done without the $100 Garmin starter kit sold by West Marine?
If possible could someone who has done this call Mark (252 339 0400) or
me or Stan (252 312 9485) at the R22 plant? (My cell doesn't work here.)
Soon?!
Thanks very much
P
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
For the list Charter and help with using the mailing list and archives go
to http://www.rhodes22.org/list
__________________________________________________
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
For the list Charter and help with using the mailing list and archives go
to http://www.rhodes22.org/list
__________________________________________________
__________________________________________________
To subscribe/unsubscribe go to
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
For the list Charter and help with using the mailing list and archives go
to http://www.rhodes22.org/list
__________________________________________________
------------------------------
Message: 10
Date: Mon, 1 Aug 2011 09:34:51 -0400
From: "Lowe, Rob" <rlowe at vt.edu>
Subject: Re: [Rhodes22-list] Hull Indention
To: The Rhodes 22 Email List <rhodes22-list at rhodes22.org>
Message-ID:
<20DE79EA3783484A94EF626CFBEB95B323699E80C4 at rivendell.cc.w2k.vt.edu>
Content-Type: text/plain; charset="us-ascii"
Bill,
I recently replaced my bunks with new support boards and mine are 2 X 6's.
And as Art asked, Triad trailer? Here is a picture of mine during
reconstruction. - rob
-------------- next part --------------
A non-text attachment was scrubbed...
Name: overall.jpg
Type: image/jpeg
Size: 235294 bytes
Desc: overall.jpg
Url :
http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20110801/9b99b72d/attachment.jpg
------------------------------
Message: 11
Date: Mon, 1 Aug 2011 09:39:03 -0400
From: Robert O Baldi <rob.o.baldi at gmail.com>
Subject: [Rhodes22-list] main sail batten
To: "rhodes22-list at rhodes22.org" <rhodes22-list at rhodes22.org>
Message-ID: <25923395-CDFE-4048-BC8A-C436F286A159 at gmail.com>
Content-Type: text/plain; charset=us-ascii
Can someone explain how to secure the batten in the main. The cord and the
Velcro strap are obviously used for some purpose ..... but how to use them
is not obvious to me.
rob
Robert Baldi
Sent from my iPad
------------------------------
_______________________________________________
Rhodes22-list mailing list
Rhodes22-list at rhodes22.org
http://www.rhodes22.org/mailman/listinfo/rhodes22-list
End of Rhodes22-list Digest, Vol 2621, Issue 1
**********************************************
More information about the Rhodes22-list
mailing list
